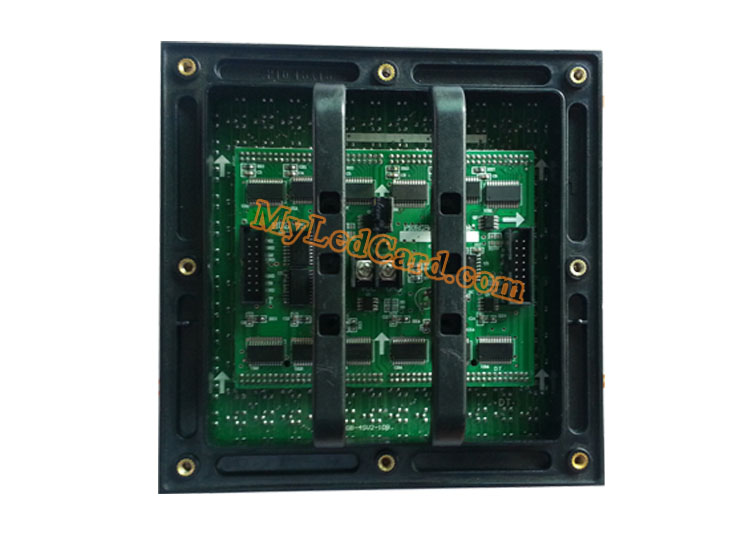

Outdoor P10 DIP Full Color LED Display Module Factory

Equipped with 10,000 pixels and more than 7000 nits per sq.m, IP65 protection level, the robust P10 outdoor full color DIP LED display module from factory direct can create crystal clear image details even in direct sunlight and can be able to work in all kinds of weather conditions, which is a perfect choice for both outdoor fixed and rental applications requiring super high resolution at extremely close viewing distances. In terms of its cost effectiveness, P10 (pixel pitch 10mm) is currently the most hot selling model for outdoor DIP full color LED display modules ensuring an ultimate peace of mind with its ultra reliable display performance 24/7 for advertisers. The best factory price includes the LED screen module, waterproof rubber, 16pin signal and 5V power cables.

Features:

- Big size LED chips and top quality driver IC

- Supports calibration technology on the LED lamps

- High brightness and excellent color uniformity

- Great heat dissipation on PCB board

- Brightness can be manually adjusted by software or auto-controlled by sensor card

- Waterproof gluing is good to be used for more than 8 years

- Low power consumption, Less maintenance and long life span

- Control systems supported: Linsn, Dbstar, Novastar, Zdec, Onbon, Xixun, Lumen, etc

Specifications:

1. Pixel Pitch: 10mm

2. Pixel Density: 10,000 pixels/sq.m

3. Pixel Configuration&LED Type：1R1G1B, DIP346

4. LED screen Module Size(L*H): 160*160mm

5. LED screen Module Resolution: 16*16 pixels

6. Panel Size(L*H*D): 960*960*155mm or as needed

7. Panel Resolution: 160*160 pixels

8. Brightness: ≥7000 nits/sq.m

9. Brightness Control: 100 grades by software or auto sensor card

10. Driving Method: 1/4 scan

11. Viewing Angle: 110°H /65°V

12. Viewing Distance: >6M

13 Refresh Rate: >400Hz

14. Grey Scale: ≥8,192 levels

15. Display Color: ≥16.7M

16. Power Consumption: max.:860W/sq.m, avg.:344W/sq.m

17. Input Voltage: 110~230V/AC (±10%)

18. Working Voltage: DC 5V

19. Input Power Frequency: 50/60Hz

20. Protection Rating: front-IP65/rear-IP54(with cabinet)

21. Operating Environment Temperature: -20°C~+50°C, Humidity: 10%~95%

22. Storage Environment Temperature:-40-50°C, Humidity: 10-90%

23. Life Span (50% brightness): ≥100,000 hours

24. Available Control System: Linsn/NovaStar/Dbstar/Colorlight/Mooncell/Onbon/Xixun/Lumen,etc

25. Transmission Distance: multi-mode fiber <500m, single mode fiber <30Km, internet cable <100m

26. Operating System: Windows Series

27. Video Input (with video processor): VGA,YC,DVI,DHMI,SDI,RGB,CVBS,GD-SDI,etc

28. Compliant Standard: CE/RoHS
