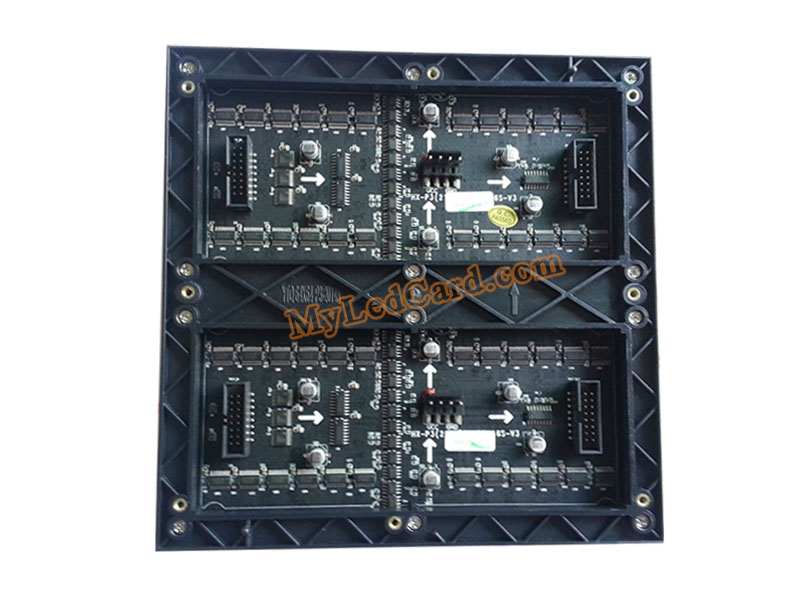

P3 Indoor SMD Black LED Screen Module 192mm x 192mm
Equipped with 111111 pixels per sq.m and dark black SMD 2121 LED lamps, these outstanding P3 LED display screen modules can deliver extremely clear image details with the most pristine, excellent contrast ratio for its display colors at super close viewing distances.It is a perfect choice for high end digital display solution for indoor installations at trade shows, broadcast studios, museums, corporate venues and other important events, and it is also ideally suited for rental and stage applications. The best price above includes the 192mm x192mm LED screen module size, 16pin signal and 5V power cables.
Features:
- Ultra high definition-111111 pixels/sq.m
- Top quality LED chips and driver IC
- Vivid colors and excellent contrast ratio
- Superb color uniformity and large viewing angles
- Supports calibration technology on the LED lamps
- Low power consumption and long life span
- IP43 protection rating to well withstand dust, moisture, static, etc
- Excellent heat dissipation on PCB board
- Brightness can be manually adjusted by software or auto-controlled by sensor card
- Supports control systems: Linsn, Novastar, Colorlight,Huidu, Dbstar, Onbon, Xixun, Listen, etc
Specifications:
2. Pixel Density: 111,111 pixels/sq.m
3. Pixel Configuration & LED Type: 1R1G1B, SMD2121
4. Module Size (L*H): 192*192mm
5. Module Resolution: 64*64 pixels
6. Panel Size (L*H*D):576*576*130mm or as needed
7. Panel Resolution:192*192 pixels
8. Brightness: ≥1600 nits/sq.m
9. Brightness Control: 100 grades by software or auto sensor card
10. Driving Method: 1/32 scan
11. Viewing Angle: 145°H /145°V
12. Viewing Distance: >1.8M
13 Refresh Rate: >800Hz
14. Grey Scale: ≥4,096 levels
15. Display Color: ≥16.7M
16. Power Consumption: max.:1050W/sq.m, avg.:420W/sq.m
17. Input Voltage: 110~230V/AC (±10%)
18. Working Voltage: DC 5V
19. Input Power Frequency: 50/60Hz
20. Protection Rating: IP43 (front/rear)
21. Operating Environment Temperature: -20°C~+50°C, Humidity: 10%~95%
22. Storage Environment Temperature:-40-50°C, Humidity: 10-90%
23. Life Span (50% brightness): ≥100,000 hours
24. Available Control System: Linsn/NovaStar/Dbstar/Colorlight/Mooncell/Onbon/Xixun/Lumen,etc
25. Transmission Distance: multi-mode fiber <500m, single mode fiber <30Km, internet cable <100m
26. Operating System: Windows Series
27. Video Input (with video processor): VGA,YC,DVI,DHMI,SDI,RGB,CVBS,GD-SDI,etc
28. Compliant Standard: CE/RoHS
