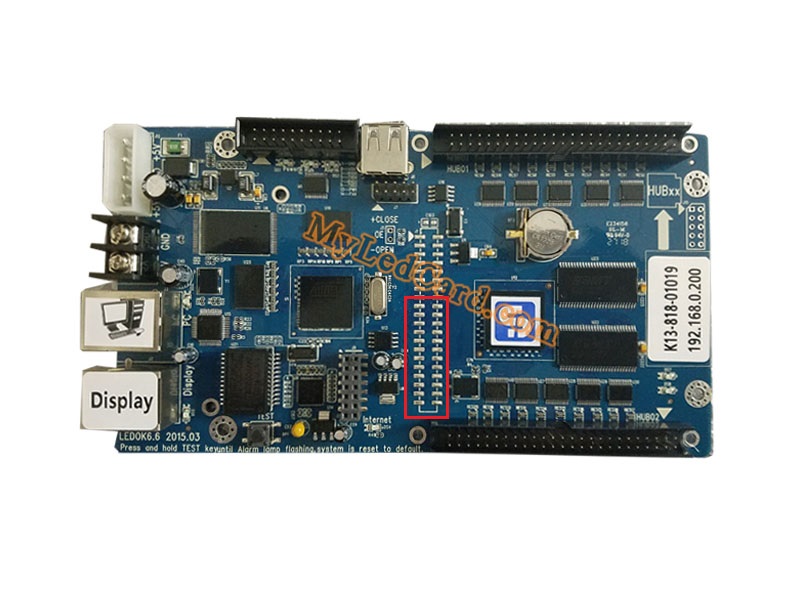

XiXun K13 Asynchronous Full color LED Sign Controller

XiXun K13 Asynchronous Full color LED Sign Controller

  • Model: MLC-XiXun-K13
  • 0 Units in Stock
  • Shipping Weight: 1Kg
  • Manufactured by: XiXun

Please Choose:


  • Product Details
  • Shipping information
  • Customer Reviews

XiXun K13 Asynchronous Full color LED Sign Controller

Product features:

1.Support 4096 gray level for red, green and blue
2.Video hardware decoding to make sure smoothly displaying, while M-series and A-series controller supports software decoding
3.One sending card supports more than one screen but each screen has the same size, to realize display same content in the same time
4.One card can support maximum 640x128 pixels--with a receiving card, fixed pixels
5.Supporting read back HCP4 file from led controller
5.M-series and A-series controller only support 1, 2, 4, 8, 16 scan types, while K-series support random scan types within 1/16 scan, like 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16 scan types
7.Intelligent connection, that is exchange receiving cards in one screen without setup again, the receiving cards will display the content after exchanging
8.One sending card can connect one HUB, will save one piece of receiving card
9.Support driver IC with PWM, such as MBI5041
10.Totally new design, setup controller through software in PC
11.It has same installation holes with synchronous controller, so it is easy to change controller

Technical parameters:


K13 sending card

Maximum pixels

640×128 ----with a receiving card

Display type

Full color

Cascading function


HUB interface

Standard hub, one sending card connects one HUB; one receiving card connects one HUB.



gray level


Special function

Support MBI 5041 IC

Scan type

Support all scan types like 1,2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16

Communication type

LEthernet/serial port/USB ports


USB sound card optional

Display on schedule


video format


flash format

support GIF,SWF

image format


text format

support TXT,RTF

display text

support single-line / multi-line / static text


editing table randomly


support digital and analog clock


Support countdown and Timing

Remote management

Support publish message to multi-screen via one PC and upgrade firmware online


Support temperature, humidity, auto-adjust brightness, Infrared remote to change programs

Storage port

Support to expanding storage via USB


LED editor V10 and LEDset2.0 software
