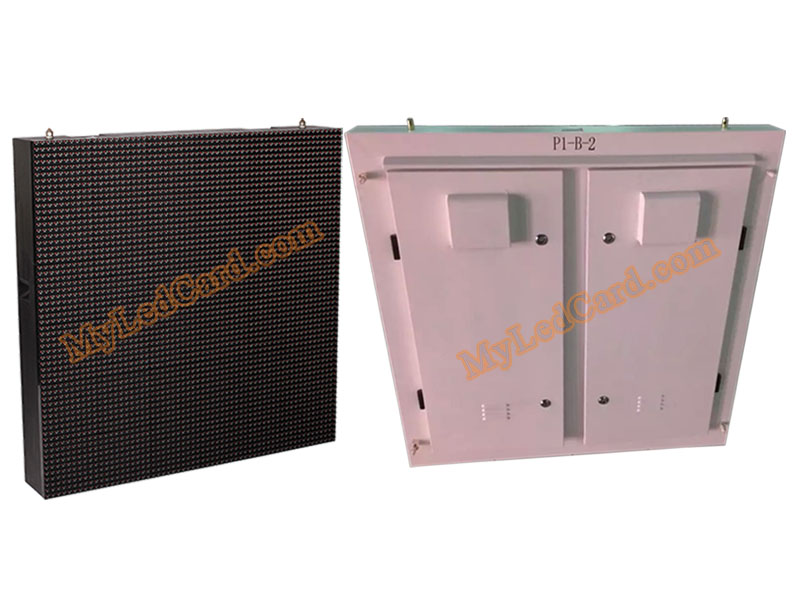

P10 Outdoor DIP Full Color LED Display Screen
  • P10 Outdoor DIP Full Color LED Display Screen
  • P10 Outdoor DIP Full Color LED Display Screen
  • P10 Outdoor DIP Full Color LED Display Screen

P10 Outdoor DIP Full Color LED Display Screen

  • Model: MLC-ODFP10MM
  • 1000 Units in Stock
  • Shipping Weight: 75Kg
$690.00
  • Product Details
  • Shipping information
  • Customer Reviews
P10 Outdoor DIP Full Color LED Display Screen

P10 DIP full color LED display screen is currently one of the best soluiton for outdoor fixed installation requiring excellent image details even under direct sunlight. Our best price is based on one SQ.M, EXW Term. And it  includes the receiving cards. The production time with aging test is 20 working days. Please contact us if you have any questions

Features:
- High resolution and high brightness;
- Easy installation and less maintenance;
- Stable performance and great heat dissipation;
- Low Power consumption and long life span;
- IP65/54 protection rating to perfectly work in all weather conditions;
- Brightness is adjustable manually or automatically against light changing.
- All programs can be digitally edited and played in a loop automatically on the timetable;
- Compatible with all kinds of signal inputs via led video processor (VGA, HDMI, SDI, DVD, TV, etc);
- With optical fiber cable, it can greatly reduce signal delay caused by transmission distance;
- Online detecting and fault informing is optional with monitored card;
- Supports all windows operation systems-2000,XP,7,8,Vista for its software.

Specifications:
1. Pixel Pitch: 10mm
2. Pixel Density: 10,000 pixels/sq.m
3. Pixel Configuration & LED Type: 1R1G1B, DIP346
4. LED Screen Module Size (L*H): 160*160mm
5. LED Screen Module Resolution: 16*16 pixels
6 .LED Screen Panel Size (L*H*D): 960*960*155mm or as needed
7. LED Screen Panel Resolution: 96*96 pixels
8. LED Display Panel Meterial: Cold rolled steel sheet
9. LED Display Panel Weight: 65KG/Sq.m
10. Brightness: ≥7,500 nits/sq.m
11. Brightness Control: 100 grades by software or auto sensor card
12. Driving Method: 1/4 scan
13. Viewing Angle: 110°H /65°V
14. Best viewing Distance: >10M
15 Refresh Rate: >600Hz
16. Grey Scale: ≥8,192 levels
17. Display Color: ≥16.7M
18. Power Consumption: max.: 900W/sq.m, avg.:360W/sq.m
19. Input Voltage: 110~230V/AC (±10%)
20. Working Voltage: DC 5V
21. Input Power Frequency: 50/60Hz
22. Protection Rating: IP65/54 (front/rear)
23. Operating Environment Temperature: -20°C~+50°C, Humidity: 10%~95%
24. Storage Environment Temperature:-40-50°C, Humidity: 10-90%
25. Life Span (50% brightness): ≥100,000 hours
26. Available Control System: Linsn/NovaStar/Dbstar/Colorlight/Mooncell/Onbon/Xixun/Lumen,etc
27. Transmission Distance: multi-mode fiber <500m, single mode fiber <30Km, internet cable <100m
28. Operating System: Windows series
29. Video Input (with video processor): VGA,YC,DVI,DHMI,SDI,RGB,CVBS,GD-SDI,etc
30. Compliant Standard: CE/RoHS



1. We ship most of the goods listed on our shop worldwide by the fastest shipping way with tracking number-- DHL or Fedex Express---2~8 days to arrive. Buyer will have to pay USD30 extra for the shipping cost if the delivery address is a remote area.



2. We will proceed with your order within 3 working days after receipt of payment. We will re-inform you another fastest delivery time when there are "Out of Stock" for the products on your order.



3. We only ship to the confirmed address for your order so please do confirm the delivery address on your payment account when you pay by PayPal or Credit Card. We will cancel the order and  refund you if it is NOT matched.  It is OK if you pay by Wire Transfer or Western Union.



6. Service transit time is provided by the carrier and excludes weekends and holidays. Transit times may vary, particularly during the holiday season.



7. Please inform us if you want to lower the product value in the shipping invoice in order to avoid or minimize the customs duties on your side. If not, we will use the actual amount as paid.



8. If required, please provide some necessary assistance for the shipping company concerning the customs clearance of the goods in your country.



7. Please check the items in front of DHL courier when they arrive. If the goods are damaged, please try to obtain local DHL’s documentary evidence for the breakage, and in the meantime, email us with photos of the packaging and products as soon as possible.



8. If you have not received your shipment within 15 days since payment date, please contact us. We will track the shipment and get back to you with a reply  A.S.A.P.



9. The products purchased will not be accepted for return and warranty if the codes are ripped off. We do not accept refund for custom made products. Regularly stocked items may be returned for refund with a 20% restocking charge if the request is made within 3 days of receiving. Items must be in good and resalable condition. Shipping costs back and forth and import taxes (if they are any) are all borne by the buyer.



10. We provide one year of quality warranty for most of LED part products and 2 years for complete LED display products (Special terms are subject to final Proforma Invoice.). If there are any defects under normal use during this period, we will fix or replace for free of charge in our factory. Customers are responsible for back and forth shipping costs.
