P5 Indoor SMD LED Display Module for Sale (320mm x 160mm) MLC-ILM-P5-2

P5 Indoor SMD LED Display Module for Sale (320mm x 160mm)

Write Review

SKU: MLC-ILM-P5-2
2500 Units in Stock
Category:Indoor LED Screen Modules

$28.00

Description
Shipping information
Reviews

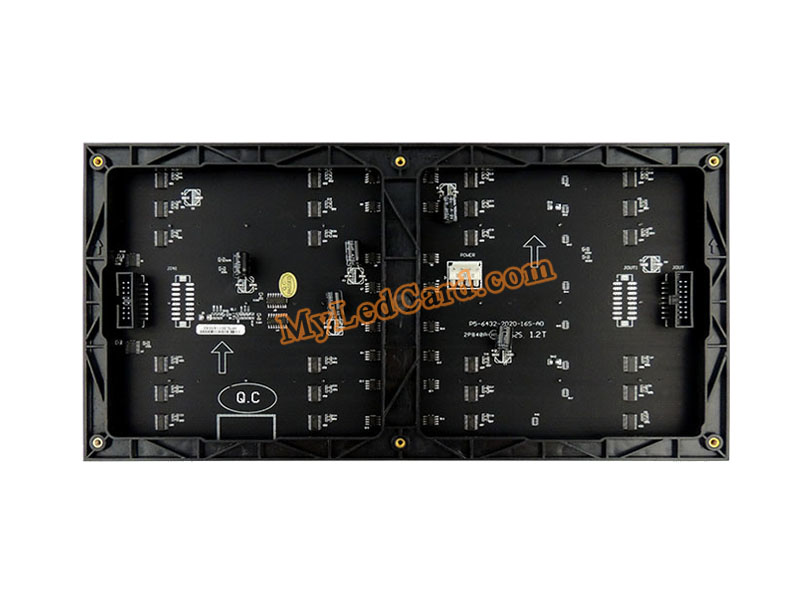

P5 Indoor SMD LED Display Module for Sale 320mm x 160mm

P5 SMD LED display module for sale is equipped with high solution of 64 x 32 pixels and large viewing angle of 145 degrees (H/V), which is ideally suited for indoor applications that require vivid image details at close distances. The best price above includes the 320mm x 160mm LED module size, 16pin signal and 5V power cables.

Features:

- Ultra high definition-40,000 pixels/sq.m

- Good quality LED chips and driver IC

- Low power consumption and long life span

- Supports calibration technology on the LED lamps

- Excellent heat dissipation on PCB board

- Superb color uniformity and large viewing angles

- IP43 protection rating to well withstand dust, moisture, static, etc

- Brightness can be manually adjusted by software or auto-controlled by sensor card

- Control systems supported: Linsn, Dbstar, Novastar, Zdec, Onbon, Xixun, Lumen, etc

Specifications:

1. Pixel Pitch: 5mm

2. Pixel Density: 40,000 pixels/sq.m

3. Pixel Configuration & LED Type: 1R1G1B, SMD2121

4. P5 LED panel Module Size (L*H): 320*160mm

5. P5 LED panel Module Resolution:32*32 pixels

6. Panel Size (L*H*D): 800*800*130mm or as needed

7. Panel Resolution: 160*160 pixels

8. Brightness: ≥1300 nits/sq.m

9. Brightness Control: 100 grades by software or auto sensor card

10. Driving Method: 1/16 scan

11. Viewing Angle: 145°H /145°V

12. Viewing Distance: >3M

13 Refresh Rate: >400Hz

14. Grey Scale: ≥4,096 levels

15. Display Color: ≥16.7M

16. Power Consumption: max.:800W/sq.m, avg.:320W/sq.m

17. Input Voltage: 110~230V/AC (±10%)

18. Working Voltage: DC 5V

19. Input Power Frequency: 50/60Hz

20. Protection Rating: IP43 (front/rear)

21. Operating Environment Temperature: -20°C~+50°C, Humidity: 10%~95%

22. Storage Environment Temperature:-40-50°C, Humidity: 10-90%

23. Life Span (50% brightness): ≥100,000 hours

24. Available Control System: Linsn/NovaStar/Dbstar/Colorlight/Mooncell/Onbon/Xixun/Lumen,etc

25. Transmission Distance: multi-mode fiber <500m, single mode fiber <30Km, internet cable <100m

26. Operating System: Windows Series

27. Video Input (with video processor): VGA,YC,DVI,DHMI,SDI,RGB,CVBS,GD-SDI,etc

28. Compliant Standard: CE/RoHS
