Indoor P4 SMD Black LED Screen Module Unit (64 x 32 Pixels)
  • Indoor P4 SMD Black LED Screen Module Unit (64 x 32 Pixels)
  • Indoor P4 SMD Black LED Screen Module Unit (64 x 32 Pixels)

Indoor P4 SMD Black LED Screen Module Unit (64 x 32 Pixels)

  • Model: MLC-ILM-P4-1
  • 1500 Units in Stock
  • Shipping Weight: 0.45Kg
  • Manufactured by: Indoor LED Module
$22.00

Quantity:
Min:  5
Contact Us If Any Question
  • Product Details
  • Shipping information
  • Customer Reviews

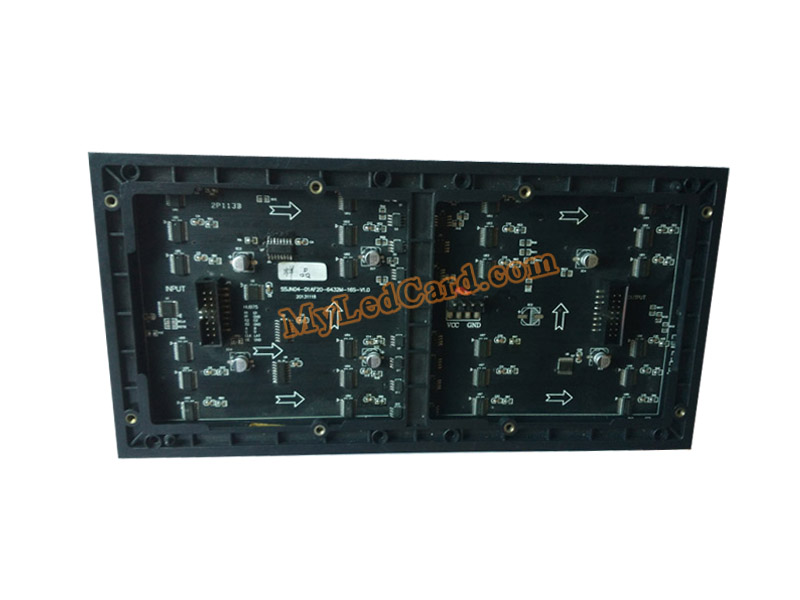

Indoor P4 SMD Black LED Screen Module Unit (64 x 32 Pixels)

Super high resolution P4  black face LED screen module unit can create uniform, extreme image quality with accurately deep, rich color depth. These dark black SMD LED panel modules with the most pristine display effects are primarily designed for superior installations at indoor places such as control rooms, broadcast studios, stages, news conferences, theaters, corporate venues, etc. The best price above includes the 256mm x 128mm  LED module16pin signal and 5V power cables.

Features:

- Ultra high definition-62,500 pixels/sq.m
- Top quality LED chips and driver IC
- Vivid colors and excellent contrast ratio
- Superb color uniformity and large viewing angles
- Supports calibration technology on the LED lamps
- Low power consumption and long life span
- IP43 protection rating to well withstand dust, moisture, static, etc
- Excellent heat dissipation on PCB board
- Brightness can be manually adjusted by software or auto-controlled by sensor card
- Supports control systems: Linsn, Novastar, Colorlight,Huidu, Dbstar, Onbon, Xixun, Listen, etc


Specifications:

1. Pixel Pitch: 4mm
2. Pixel Density: 62,500 pixels/sq.m
3. Pixel Configuration & LED Type: 1R1G1B, SMD2121
4. P4 LED Module Size (L*H): 256*128mm
5. Indoor LED Module Resolution: 64*32 pixels
6. Panel Size (L*H*D): 640*640*130mm or as needed
7. Panel Resolution´╝Ü160*160 pixels
8. Brightness: ≥1500 nits/sq.m
9. Brightness Control: 100 grades by software or auto sensor card
10. Driving Method: 1/16 scan
11. Viewing Angle: 145°H /145°V
12. Viewing Distance: >2.4M
13 Refresh Rate: >800Hz
14. Grey Scale: ≥4,096 levels
15. Display Color: ≥16.7M
16. Power Consumption: max.:915W/sq.m, avg.:366W/sq.m
17. Input Voltage: 110~230V/AC (±10%)
18. Working Voltage: DC 5V
19. Input Power Frequency: 50/60Hz
20. Protection Rating: IP43 (front/rear)
21. Operating Environment Temperature: -20°C~+50°C, Humidity: 10%~95%
22. Storage Environment Temperature:-40-50°C, Humidity: 10-90%
23. Life Span (50% brightness): ≥100,000 hours
24. Available Control System: Linsn/NovaStar/Dbstar/Colorlight/Mooncell/Onbon/Xixun/Lumen,etc
25. Transmission Distance: multi-mode fiber <500m, single mode fiber <30Km, internet cable <100m
26. Operating System: Windows Series
27. Video Input (with video processor): VGA,YC,DVI,DHMI,SDI,RGB,CVBS,GD-SDI,etc
28. Compliant Standard: CE/RoHS





1. We ship most of the goods listed on our shop worldwide by the fastest shipping way with tracking number-- DHL or FedEx Express---around 3~8 days to arrive (It might delay for a few days currently due to the Coronavirus pandemic worldwide). Buyer will have to pay USD35 extra for the shipping cost if the delivery address is a remote area.



2. We will process your order within 2 working days after receipt of payment. We will re-inform you another fastest delivery time when it happens to be"Out of Stock" for the products on your order.



3. We only ship to the confirmed address for your order so please do confirm the delivery address on your payment account when you pay by PayPal or Credit Card. We will cancel the order and  refund you if it is NOT matched.  It is OK if you pay by Wire Transfer or Western Union.



6. Service transit time is provided by the shipping company and excludes weekends and holidays. Transit times may vary, particularly during the holiday season.



7. Please inform us if you want to lower the product value in the shipping invoice in order to avoid or minimize the customs duties on your side. If not, we will use the actual amount as paid.



8. If required, please provide some necessary assistance for the shipping company concerning the customs clearance of the goods in your country.



7. Please check the items in front of DHL/FedEx courier when they arrive. If the goods are damaged, please try to obtain local DHL’s documentary evidence for the breakage, and in the meantime, email us with photos of the packaging and products as soon as possible.



8. If you have not received your shipment within 15 days since payment date, please contact us. We will track the shipment and get back to you with a reply  A.S.A.P.



9. The products purchased will not be accepted for return and warranty if the codes are ripped off. We do not accept refund for custom made products. Regularly stocked items may be returned for refund with a 20% restocking charge if the request is made within 3 days of receiving. Items must be in good and resalable condition. Shipping costs back and forth and import taxes (if they are any) are all borne by the buyer.



10. We provide one year of quality warranty for most of LED part products and 2 years for complete LED display products (Special terms are subject to final Proforma Invoice.). If there are any defects under normal use during this period, we will fix or replace for free of charge in our factory. Customers are responsible for back and forth shipping costs.
