Home / Indoor LED Screen Modules / P3 Indoor Soft LED Screen Module

P3 Indoor Soft LED Screen Module MLC-IFM-P3MM

P3 Indoor Soft LED Screen Module

Write Review

SKU: MLC-IFM-P3MM
500 Units in Stock
Category:Indoor LED Screen Modules

$39.00

Description
Shipping information
Reviews

P3 Indoor Soft LED Screen Module

The best price includes the 240mm x 120mm flexible LED screen module, magnets, 16 pin signal cable and 5V power cable.

Features:

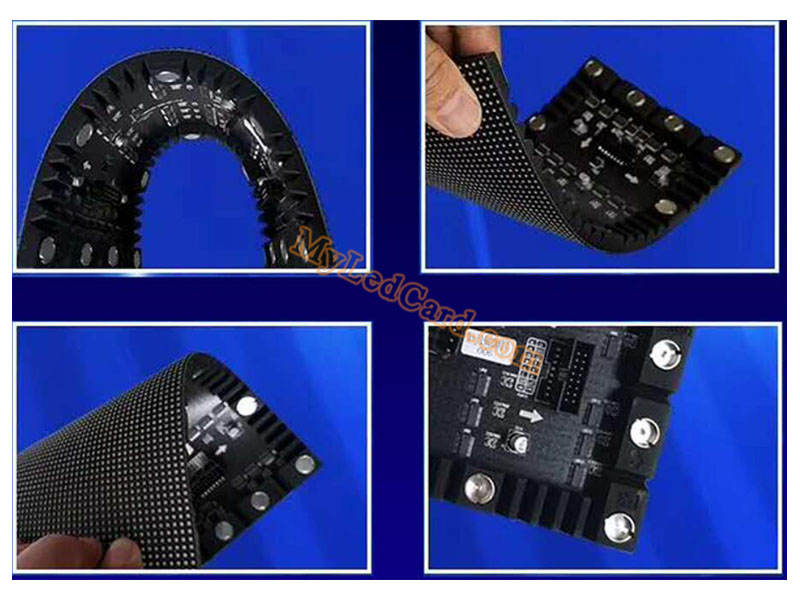

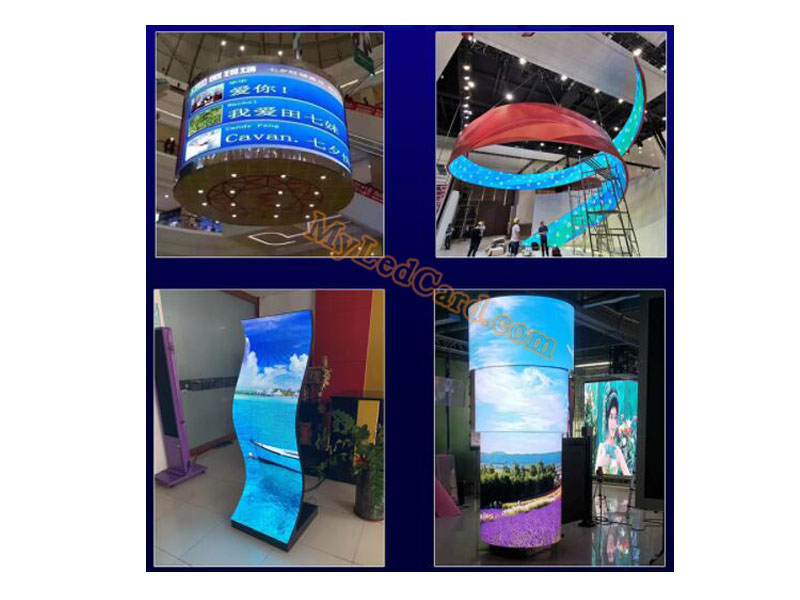

1. This soft module is a very practical, which can be displayed in a circle or arc shape, can be hoisted, or displayed vertically. It is a highly creative product;

2. Various effects such as rolling, bending and swinging can be designed according to customer's needs;

3. Using special materials and advanced technology, ultra-thin and ultra-light, the lightest weight of a single module is only 100G;

4. Adopting strong magnetic adsorption type installation, direct adsorption; simple installation and convenient maintenance;

5. The PCB adopts a flexible soft board, and the mask and bottom shell are made of rubber;

6. Using distributed scanning and modular design technology, the reliability and stability are higher;

7. The gray scale can be 10-16 bits, and the refresh frequency can be 600-1920Hz, so that the LED display screen has no delay or smear phenomenon when presenting the image.

Specifications:

1. Pixel Pitch: 3mm

2. Pixel Density: 111,111 pixels/sq.m

3. Pixel Configuration & LED Type: 1R1G1B, SMD2121

4. LED Module Size (L*H): 240*120mm

5. LED Module Resolution:80*40 pixels

6. Panel Size (L*H*D): as needed

7. Panel Resolution: as needed

8. Brightness: ≥900 nits/sq.m

9. Brightness Control: 100 grades by software or auto sensor card

10. Driving Method: 1/20 scan

11. Viewing Angle: 160°H /140°V

12. Viewing Distance: >3M

13 Refresh Rate: ≥1,920Hz

14. Grey Scale: ≥16,384 grades

15. Display Color: ≥16.7M

16. Power Consumption: max.:800W/sq.m, avg.:320W/sq.m

17. Input Voltage: 110~230V/AC (±10%)

18. Working Voltage: DC 5V

19. Input Power Frequency: 50/60Hz

20. Protection Rating: IP43 (front/rear)

21. Operating Environment Temperature: -20°C~+50°C, Humidity: 10%~95%

22. Storage Environment Temperature:-40-50°C, Humidity: 10-90%

23. Life Span (50% brightness): ≥100,000 hours

24. Available Control System: Linsn/NovaStar/Dbstar/Colorlight/Mooncell/Onbon/Xixun/Lumen,etc

25. Transmission Distance: multi-mode fiber <500m, single mode fiber <30Km, internet cable <100m

26. Operating System: Windows Series

27. Video Input (with video processor): VGA,YC,DVI,DHMI,SDI,RGB,CVBS,GD-SDI,etc

28. Compliant Standard: CE/RoHS

23. Life Span: ≥100,000 hours

24. Available Control System: Linsn/NovaStar//Colorlight/Mooncell/Onbon/Xixun/Lumen,etc

25. Transmission Distance: multi-mode fiber <500m, single mode fiber <30Km, internet cable <100m

26. Operating System: Windows Series

27. Video Input (with video processor): VGA,YC,DVI,DHMI,SDI,RGB,CVBS,GD-SDI,etc

28. Compliant Standard: CE/RoHS
