Sysolution D90 D90-75 D90-A4S LED Receiving Card

$45.00

  • Description
  • Shipping information
  • Reviews
Sysolution D90 D90-75 D90-A4S LED Receiving Card

Sysolution D90 LED display receiving card series includes D90, D90-75, and D90-A4S.

Features of universal receiving card D90:
Support screen type: single color/double color/full color, real pixel/virtual pixel
Number of receiving cards for cascading single network cable: <200
Pixel area of ​​a single receiving card: 256×384
Number of RGB data groups output by a single receiving card: 20
Number of RGB driving rows: 1~32
Optical fiber transmission distance: multi-mode fiber: 500 meters; single-mode fiber: 10 kilometers
Working current (A): 0.6A~1.0A
Working temperature (℃): -20℃-75℃
Working humidity (%): 0℃-95℃

Type receiving card
Model D90
LED module full color
Single card output RGB data 16 groups support
Single card output RGB data 20 groups support
Pixels Single card can load up to 96K pixels
Wide voltage input +3.5V ~ +5.5V
Conventional chip High refresh, high brightness, high grayscale
Network cable dual backup function support
Cable data detection support
Brightness and chroma point-by-point correction support
PWM chip, point-by-point detection chip, conventional chip support
All receiving card parameter monitoring support
EU certification RoHs standard, CE-EMC standard

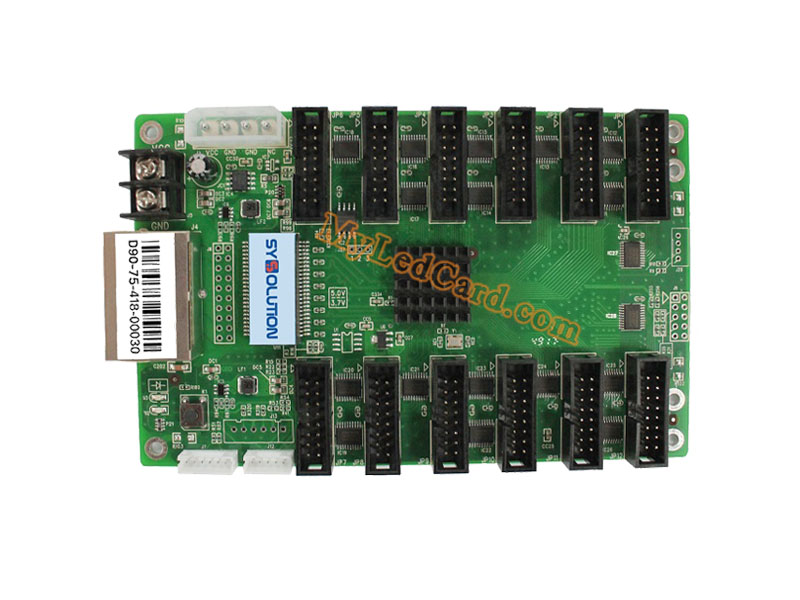

Features of universal receiving card D90-75:
Supported screen type: single color/double color/full color, real pixel/virtual pixel
Number of receiving cards for cascading single network cable: <200
Pixel area of ​​a single receiving card: 256×384
Number of RGB data groups output by a single receiving card: 24
Number of RGB driving rows: 1~32
Optical fiber transmission distance: multi-mode fiber: 500 meters; single-mode fiber: 10 kilometers
Working current (A): 0.6A~1.0A
Working temperature (℃): -20℃-75℃
Working humidity (%): 0%-95%

Type receiving card
LED module full color
Single card output RGB data 24 groups support
Pixels Single card can load up to 96K pixels
Wide voltage input +3.5V ~ +5.5V
Conventional chip High refresh, high brightness, high grayscale
Network cable dual backup function support
Cable data detection support
Brightness and chroma point-by-point correction support
PWM chip, point-by-point detection chip, conventional chip support
All receiving card parameter monitoring support
EU certification RoHs standard, CE-EMC standard

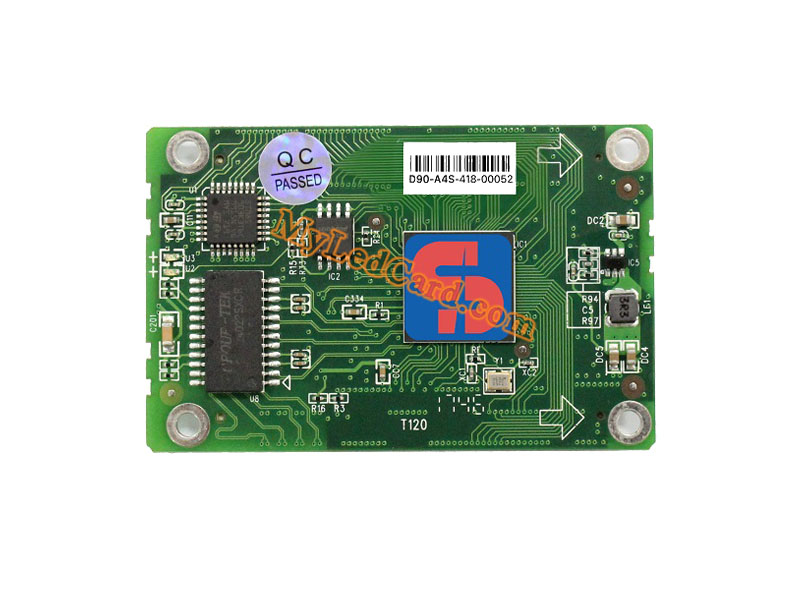

Features of universal receiving card D90-A4S:
Supported screen type: single color/double color/full color, real pixel/virtual pixel
Number of receiving cards for cascading single network cable: <200
The pixel area of ​​a single receiving card: 256×256
Number of RGB data groups output by a single receiving card: 24
Number of RGB driving rows: 1~32
Optical fiber transmission distance: multi-mode fiber: 500 meters; single-mode fiber: 10 kilometers
Working current (A): 0.6A~1.0A
Working temperature (℃): -20℃-75℃
Working humidity (%): 0%-95%

Type receiving card
Model D90_A4S
LED module full color
Single card output RGB data 24 groups
Pixels Single card can load up to 96K pixels
Wide voltage input +3.5V ~ +5.5V
Conventional chip High refresh, high brightness, high grayscale
Network cable dual backup function support
Cable data detection support
Brightness and chroma point-by-point correction support
PWM chip, point-by-point detection chip, conventional chip support
External environment monitoring function support
Each interface provides a power pin to support the unit board to take power
EU certification RoHs standard, CE-EMC standard
