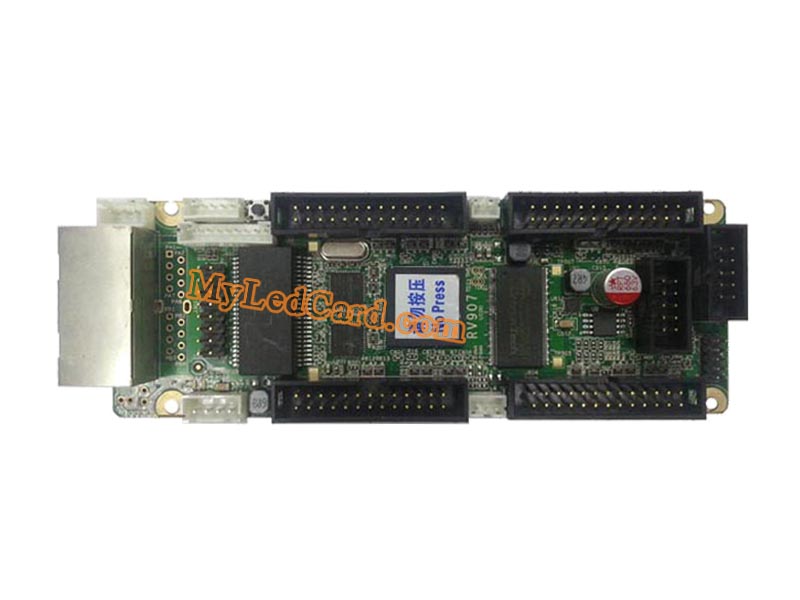

Linsn RV907 LED Full Color Wall Receiving Card

The receiving card RV907(RV907H), RV917, RV927, RV937 is designed specifically for lease screen. Not only compatible with generation
RV807/817/827/837 completely, but also take care the needs of led lighting and led curtain. RV907 with the following features:

1. Compatible with RV801, has all the features of RV801D
2. Small size (479mm X 1365mm), mounting holes are same with RV802
3. Four output interfaces can directly drive module (save hub card)
4. Each of the 4 interfaces has up to 6 groups parallel-data; total 24 groups of parallel data interface to achieve higher refresh rate
5. Provide a 90 degree 26-Pin interface, convenient PCB docking design
6. Provide 16 groups serial-data for led lighting and led curtain
7. Each interface has VCC pin to get power supply for control system from led module. No need to get extra power supply for control system.
8. Support 12-bit HDMI colors input (required the 9th generation sending card)
9. Using18-bit signal processor, maximum support 18-bit (260,000) gray (each of red, green and blue)
10. Single card maximum supports 1024X256 pixels, and 1024 grades single pixel chromaticity correction
11. Supports single-card color space conversion
12. Support configuration file readback
13. Support program replication
14. Supports pixel fault detection (requires a dedicated chip support)
15. Support network cable BER test
16. Support flat cable fault detection
17. Support the cabinet-door monitoring (open/close)
18. Two lines fan-speed monitoring
19. Three lines Voltage monitoring: one for the system, two for cabinet power
20. Temperature monitoring
21. Humidity monitoring (humidity sensor sold separately)
22. Smoke monitoring (smoke module sold separately)
23. In line with EU standards CE-EMC
