ColorLight X2 X2S LED Display Video Controller

Models: X2, X2S

Colorlight X2 is a professional LED display controller, it possesses powerful video signal receiving capacity, and supports multiple signal inputs, with max input resolution of 1920×1200 pixels. Meanwhile, 2 Gigabit Ethernet output ports support big LED display of 2560 pixels in maximum width/height.

X2 Features:

· Supports 5 video input ports including 1×SDI, 1×HDMI, 1×DVI, 1×VGA, 1×CVBS;

· Supports input resolution up to 1920×1200@60Hz;

· Loading capacity:1.3 million pixels,Maximum Width/Height: 4096 pixels/2560 pixels;

· Supports arbitrary switching of video input, and the image can be zoomed freely;

· Dual USB2.0 for high speed configuration and easy cascading;

· Supports splicing and cascading among several controllers with synchronization strictly;

· Supports brightness and chromaticity adjustment;

· Supports improved gray-scale at low brightness;

· Supports HDCP1.4:

· Compatible with all receiving cards, multifunction cards, optical fiber converters of Colorlight.

X2S Features:

· Supports 2 types of video input ports including 1 HDMI and 2 DVI;

· Input resolution: up to 1920*1200@60Hz, supports arbitrary setting of resolution;

· Video output load capacity: 1.31 million pixels, up to 4096 points wide, up to 2560 points;

· Support arbitrary switching, zooming and cropping of video sources;

· Support screen shift;

· Dual USB2.0 high-speed communication interface, used for arbitrary cascade connection between computer debugging and main control;

· Support brightness and color temperature adjustment;

· Support low brightness and high gray;

· Support HDCP1.1;

· Support the full range of Colorlight receiving cards, multi-function cards, and fiber optic transceivers.

X2 Specifications:

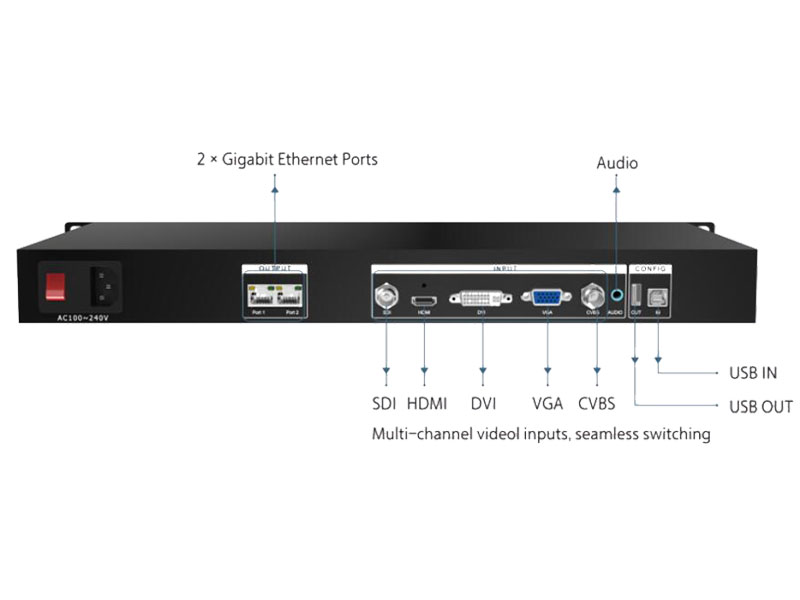

Input Interface
SDI	SDI input
HDMI	HDMI input
DVI	DVI input
VGA	VGA input
CVBS	CVBS input
AUDIO	Audio input, input audio signal and transmit to the multifunction card

Output Interface
Port 1/2/3/4	RJ45, 4 Gigabit Ethernet ports

Controlling Interface
USB_OUT	USB output, cascading with next controller
USB_IN	USB input, which connect with PC to configure parameters

Input Index
Port	Number	Resolution Specification
SDI	1	1080P
HDMI	1	EIA/CEA-861 Standard, supports 1920×1200@60Hz, supports HDCP
DVI	1	VESA Standard(supports 1920×1200@60Hz), supports HDCP
VGA	1	VESA Standard (supports input resolution up to 1920×1200@60Hz)
CVBS	1	PAL/NTSC

Specification of complete machine
Size	1U standard box
Input Voltage	AC 100~240V
Rated Power Consumption	20W
Working temperature	-25℃~80℃
Weight	2kg
