ColorLight X4 X4S X4E LED Display Controller

Colorlight X4 series models: X4, X4S, X4E

Colorlight X4 is a professional LED display video controller, it possesses powerful video signal receiving capacity, and supports multiple signal inputs, in which max input resolution is 1920*1200 pixels. Meanwhile, 4 Gigabit Ethernet outputs support arbitrary splicing.

X4 adopts dual USB2.0 interfaces for high-speed configuration and easy cascading, and the operation is simple and convenient. Also, it equips a series of versatile functions, which have many advantages in applications of manufacture and engineering.

X4 Features:

· Supports 5 Video input ports including SDI×1, HDMI×1, DVI×1, VGA×1, CVBS×1;

· Supports input resolution up to 1920×1200@60Hz;

· Loading capacity:2.6 million pixels,Maximum Width：4096 pixels, Maximum height: 2560 pixels;

· Supports arbitrary switching of video input, and the image can be zoomed freely;

· Dual USB2.0 for high speed configuration and easy cascading;

· Supports splicing and cascading among several controllers with synchronization strictly;

· Supports brightness and chromaticity adjustment;

· Supports improved gray-scale at low brightness;

· Supports HDCP1.4；

· Compatible with all receiving cards, multifunction cards, optical fiber converters of Colorlight.

X4S Features:

· Supports 2 types of video input interfaces, including 1 HDMI and 2 DVI;

· Input resolution: up to 1920*1200@60Hz, support arbitrary setting of resolution;

· Video output load capacity: 2.6 million pixels, the widest can reach 4096 dots, the highest can reach 2560 dots;

· Support arbitrary switching, zooming and cropping of video sources;

· Support screen shift;

· Dual USB2.0 high-speed communication interface, used for arbitrary cascade connection between computer debugging and main control;

· Support brightness and color temperature adjustment;

· Support low brightness and high gray;

· Support HDCP1.1;

· Support the full range of Colorlight receiving cards, multi-function cards and optical fiber transceivers.

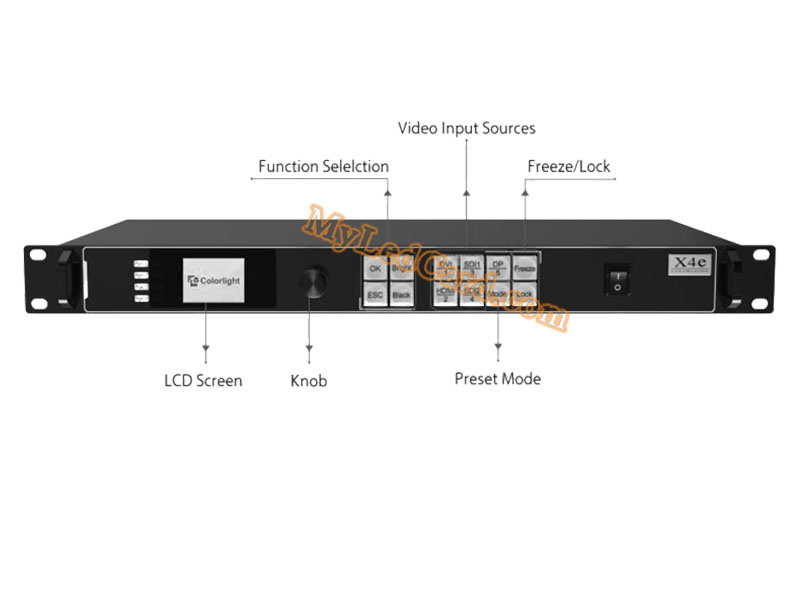

X4E controller is a professional control system and video processing equipment specially designed for LED engineering applications. It equips various video signal interfaces, supports high-definition digital ports (SDI, HDMI, DVI, DP), and seamless switching between signals can be achieved; it supports broadcast quality scaling and multi-pictures display.

X4E Features:

• Supports various digital signal ports, including 2×SDI, 1×DP, 1×HDMI (with loop), 1×DVI (with loop)

• Supports input resolution up to 1920×1200@60Hz

• Loading capacity: 2.6 million pixels, Maximum Width/Height: 4096 pixels

• Supports arbitrary switching and scaling of video source

• Supports three-picture displays, the location and size can be adjusted freely

• Supports HDCP1.4

• Dual USB2.0 for high speed configuration and easy cascading among controllers

• Supports brightness and chromaticity adjustment

• Supports improved gray-scale at low brightness

• Compatible with all receiving cards, multifunction cards, optical fiber converters of Colorlight

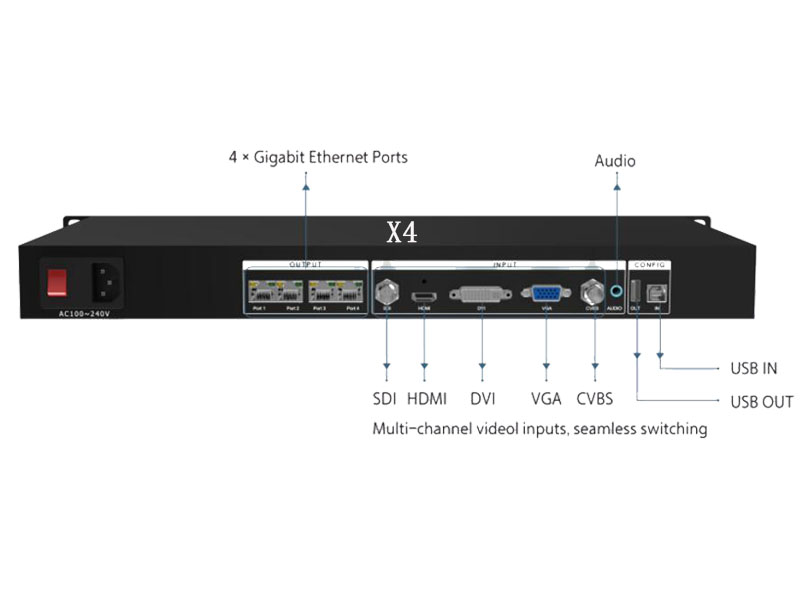

X4 Specifications:

Input Interface
SDI	SDI input
HDMI	HDMI input
DVI	DVI input
VGA	VGA input
CVBS	CVBS input
AUDIO	Audio input, input audio signal and transmit to the multifunction card

Output Interface
Port 1/2/3/4	RJ45, 4 Gigabit Ethernet ports

Controlling Interface
USB_OUT	USB output, cascading with next controller
USB_IN	USB input, which connect with PC to configure parameters

Input Index
Port	Number	Resolution Specification
SDI	1	1080P
HDMI	1	EIA/CEA-861 Standard, supports 1920×1200@60Hz, supports HDCP
DVI	1	VESA Standard(supports 1920×1200@60Hz), supports HDCP
VGA	1	VESA Standard (supports input resolution up to 1920×1200@60Hz)
CVBS	1	PAL/NTSC

Specification of complete machine
Size	1U standard box
Input Voltage	AC 100~240V
Rated Power Consumption	20W
Working temperature	-25℃~80℃
Weight	2kg

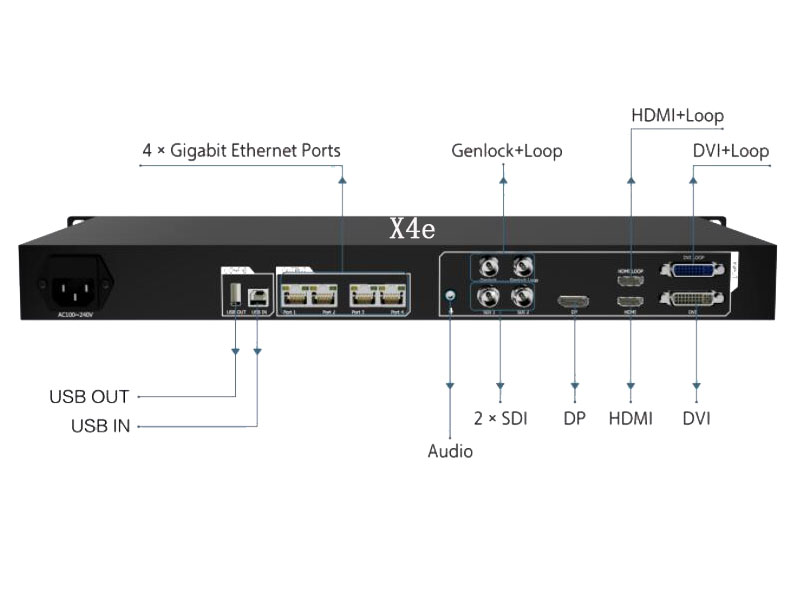

X4E Specifications:

Input Interface
SDI	2 SDI inputs, 1080P
DP	DP input, VESA Standard, supports input resolution up to 1920×1200@60Hz
HDMI	HDMI input (with loop), EIA/CEA-861 Standard, supports 1920×1200@60Hz, supports HDCP
DVI	DVI input (with loop), VESA Standard (supports 1920×1200@60Hz), supports HDCP

Output Interface
Port1-4	RJ45，4 Gigabit Ethernet ports

Controlling Interface
USB OUT	USB output, cascading with next controller
USB_IN	USB input, which connects with PC to configure parameters
Genlock	Genlock signal input ensures synchronism of display image
Genlock Loop	Genlock synchronous signal loop output

Specifications
Size	1U standard box
Input Voltage	AC 100~240V
Rated Power Consumption	20W
Working Temperature	-25~80℃
Weight	2kg
