Zdec V5 LED Optical Fiber Control System

Write Review

SKU: ZDEC-V5-Fiber
5 Units in Stock
Brand: Zdec
Category:LED Control Card Accessories

$1,950.00

Description
Shipping information
Reviews

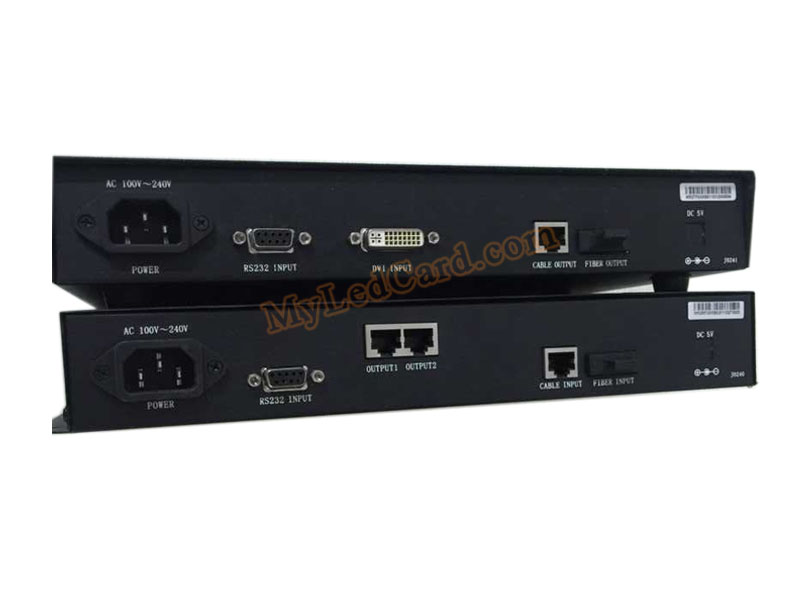

The Zdec V5 LED optical fiber online control system (transmitter + receiver) supports both vertical and horizontal screen configurations with reliable, high-speed data transmission. By pioneering the use of Gigabit Ethernet and high-speed fiber optic networking in LED display transmission, a single two-core optical fiber can control 1024x768 pixels.

Depending on the fiber type, transmission distances reach up to 500 meters for multi-mode optical fiber and up to 15 kilometers for single-mode optical fiber. The system communicates via an RS232 serial port protocol, fully supports Windows operating systems, and features automatic parameter self-protection so settings are instantly restored after powering back on.

Specifications
• Transmission Medium:
o Multi-mode optical fiber (62.5/125 um)
o Single-mode optical fiber (9/125 um)
• Maximum Transmission Distance:
o Multi-mode optical fiber: 500 meters
o Single-mode optical fiber: 15 kilometers
• Screen Applications: Tri-color real pixel line control & Virtual pixel line control of three-color four-lamp.
• Unit Board Requirements:
o Compatible with cell boards based on the ZQL9702X chip.
o Maximum limit of 32 rows by 64 columns for both real and virtual pixel cell boards.

Features
• High Scan Frequency: Ensures smooth and stable image processing.
• Increased Refresh Frequency: Reduces flicker for smoother video playback.
• Low Grey Curve Adjustment: Delivers richer details in darker image gradients.
• Improved Shooting Effect: Optimized performance to prevent scan lines or artifacts when captured on camera.
• Customized Gray Curve: Tailor color mapping to meet specific project or calibration requirements.

Stock & Replacement Notice: If the original Zdec V5 controller is out of stock. We can provide a fully compatible replacement package consisting of the ZDEC V602 controller + ZDEC fiber converters. With this alternative setup, the maximum resolution that each scan/receiving card can run on the length or width of the LED screen is 500 pixels.
