P8 Outdoor High Quality SMD LED Display Modules Manufacturer

  • Model: MLC-OLM-P8-1
  • 1200 Units in Stock
  • Shipping Weight: 0.75Kg
  • Manufactured by: Outdoor LED Module
$27.00

Quantity:
Min:  30
Contact Us If Any Question
  • Product Details
  • Shipping information
  • Customer Reviews

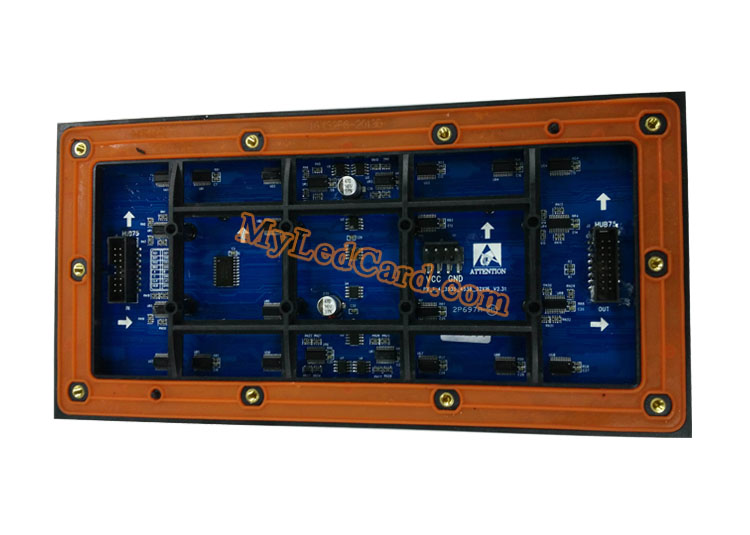

P8 Outdoor High Quality SMD LED Display Modules Manufacturer

The robust P8 outdoor SMD LED display module manufacturer direct is specifically designed for fixed or mobile/rental installations in brighter environments ( semi-outdoor and outdoor) for 24/7 branding and advertising purposes. It can produce a high light output of up to 6000 nits. Those waterproof SMD LED modulesvery much excel in performance compared to basic outdoor DIP display boards, which are a perfect choice for applications requiring clear clarity with large viewing angles under sunlight at close distances. The best price includes the 256mm x 128mm SMD LED module, waterproof rubber, 16pin signal and 5V power cables.

Features:

- Big size LED chips and top quality driver IC

- Supports calibration technology on the LED lamps

- High brightness and excellent color uniformity

- Great heat dissipation on PCB board

- Brightness can be manually adjusted by software or auto-controlled by sensor card

- Waterproof gluing is good to be used for more than 8 years

- Low power consumption, Less maintenance and long life span

- Control systems supported: Linsn, Dbstar, Novastar, Zdec, Onbon, Xixun, Lumen, etc

Specifications:

1. Pixel Pitch: 8mm
2. Pixel Density: 15,625 pixels/sq.m
3. Pixel Configuration & LED Type: 1R1G1B, SMD3535
4. P8 LED Module Size(L*H):256*128mm
5. P8 LED Module  Resolution: 32*16 pixels
6. Panel Size(L*H*D): 960*960*155mm or as needed
7. Panel Resolution: 120*120 pixels
8. Brightness: ≥6500 nits/sq.m
9. Brightness Control: 100 grades by software or auto sensor card
10. Driving Method: 1/4 scan
11. Viewing Angle: 145°H /145°V
12. Viewing Distance: >8M
13 Refresh Rate: >400Hz
14. Grey Scale: ≥8,192 levels
15. Display Color: ≥16.7M
16. Power Consumption: max.:890W/sq.m, avg.:356W/sq.m
17. Input Voltage: 110~230V/AC (±10%)
18. Working Voltage: DC 5V
19. Input Power Frequency: 50/60Hz
20. Protection Rating: front-IP65/rear-IP54(with cabinet)
21. Operating Environment Temperature: -20°C~+50°C, Humidity: 10%~95%
22. Storage Environment Temperature:-40-50°C, Humidity: 10-90%
23. Life Span (50% brightness): ≥100,000 hours
24. Available Control System: Linsn/NovaStar/Dbstar/Colorlight/Mooncell/Onbon/Xixun/Lumen,etc
25. Transmission Distance: multi-mode fiber <500m, single mode fiber <30Km, internet cable <100m
26. Operating System: Windows Series
27. Video Input (with video processor): VGA,YC,DVI,DHMI,SDI,RGB,CVBS,GD-SDI,etc
28. Compliant Standard: CE/RoHS

1. We ship most of the items listed at our online shop worldwide using the fastest shipping way with a tracking number via-DHL, FedEx, or UPS Express, which is around 4~8+ days to arrive. For Brazil, we only use EMS Express. The buyer will need to pay USD35 extra for the freight cost if the delivery address is listed as a remote area for shipping companies.

2. We can use the buyer's shipping account to send the goods. But the buyer shall make an appointment for the pickup by himself and send us the shipping lablel. Simply just providing us a shipping account will not be accepted. If you use a FedEx account, please also ask them for a control number or reference number.

3. We will process your order within 1~3 working days after receipt of payment. We will re-inform you of another fastest delivery time when it happens to be"Out of Stock" for the products on your order.

4. We only ship to the confirmed address for your order so please do confirm the delivery address on your payment account when you pay by PayPal or Credit Card. We will cancel the order and refund you if it does not match.  It is OK if you pay by Wire Transfer or Western Union.

5. Service transit time is provided by the shipping company and excludes weekends and holidays. Transit times may vary, particularly during the holiday season.

6. The buyer shall pay the customs duty on his side if occurred. Please inform us if you want to lower the product value in the shipping invoice. If not, we will use the actual amount as paid. In most EU countries, this is not allowed. It has to be the real amount as paid. And for all EU countries, Switzerland, Norway and Ireland, a VAT number must be providedfor customs clearance.

7. If required, please provide some necessary assistance for the shipping company concerning the customs clearance of the goods in your country.

8. Please check the items in front of the DHL/FedEx courier when they arrive. If the goods are damaged, please try to obtain local DHL’s documentary evidence for the breakage, and in the meantime, email us with photos of the packaging and products as soon as possible.

9. If you have not received your shipment within 15 days since the payment date, please contact us. We will track the shipment and get back to you with a reply  ASAP.

10. The products purchased will not be accepted for return and warranty if the codes are ripped off. We do not accept refunds for custom-made products. Regularly stocked items may be returned for refund with a 20% restocking charge if the request is made within 3 days of receiving. Items must be in a good and resalable condition. Shipping costs back and forth and import taxes (if they are any) are all borne by the buyer.

11. We provide six months to one year of quality warranty for most LED part products and 2 years for complete LED display products (Special terms are subject to final Proforma Invoice.). If there are any defects under normal use during this period, we will fix or replace them for free of charge in our factory. Customers are responsible for back and forth shipping costs.
