Outdoor P8 SMD 320mm x 160mm LED Display Screen Module Size MLC-OLM-P8-2

Outdoor P8 SMD 320mm x 160mm LED Display Screen Module Size

(1) Write Review

SKU: MLC-OLM-P8-2
1800 Units in Stock
Category:Outdoor LED Screen Modules

$32.00

Description
Shipping information
Reviews

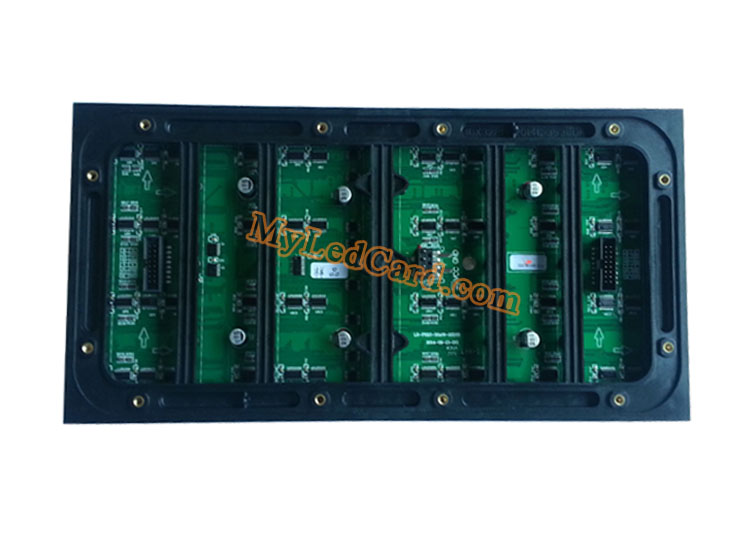

Outdoor P8 SMD 320mm x 160mm LED Display Screen Module Size

Equipped with SMD3535 waterproof LED lamps in large viewing angles and high brightness of up to 5500 nits per sqm, the ultimate P8mm LED display screen module is a perfect choice for both fixed and rental/mobile installations requiring stunning image clarity at ultra close distances, which is one of the most premium solutions for today's outdoor SMD LED display applications. The best price includes the 320mm x 160mm SMD LED module size, waterproof rubber, 16pin signal and 5V power cables.

Features:

- Big size LED chips and top quality driver IC

- Supports calibration technology on the LED lamps

- High brightness and excellent color uniformity

- Great heat dissipation on PCB board

- Brightness can be manually adjusted by software or auto-controlled by sensor card

- Waterproof gluing is good to be used for more than 8 years

- Low power consumption, Less maintenance and long life span

- Control systems supported: Linsn, Dbstar, Novastar, Zdec, Onbon, Xixun, Lumen, etc

Specifications:

1. Pixel Pitch: 8mm

2. Pixel Density: 15,625 pixels/sq.m

3. Pixel Configuration & LED Type: 1R1G1B, SMD3535

4. LED screen Module Size(L*H): 320*160mm

5. LED screen Module Resolution: 40*20 pixels

6. Panel Size(L*H*D): 960*960*155mm or as needed

7. Panel Resolution: 120*120 pixels

8. Brightness: ≥5500 nits/sq.m

9. Brightness Control: 100 grades by software or auto sensor card

10. Driving Method: 1/5 scan

11. Viewing Angle: 145°H /145°V

12. Viewing Distance: >8M

13 Refresh Rate: >400Hz

14. Grey Scale: ≥8,192 levels

15. Display Color: ≥16.7M

16. Power Consumption: max.:890W/sq.m, avg.:356W/sq.m

17. Input Voltage: 110~230V/AC (±10%)

18. Working Voltage: DC 5V

19. Input Power Frequency: 50/60Hz

20. Protection Rating: front-IP65/rear-IP54(with cabinet)

21. Operating Environment Temperature: -20°C~+50°C, Humidity: 10%~95%

22. Storage Environment Temperature:-40-50°C, Humidity: 10-90%

23. Life Span (50% brightness): ≥100,000 hours

24. Available Control System: Linsn/NovaStar/Dbstar/Colorlight/Mooncell/Onbon/Xixun/Lumen,etc

25. Transmission Distance: multi-mode fiber <500m, single mode fiber <30Km, internet cable <100m

26. Operating System: Windows Series

27. Video Input (with video processor): VGA,YC,DVI,DHMI,SDI,RGB,CVBS,GD-SDI,etc

28. Compliant Standard: CE/RoHS
