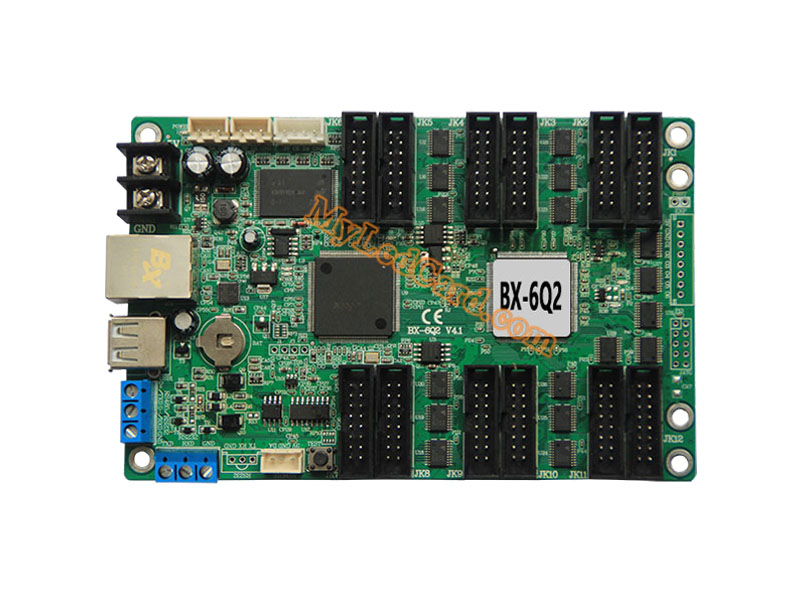

OnBon BX-6Q Series Full Color LED Controller MLC-BX-6Q by OnBon

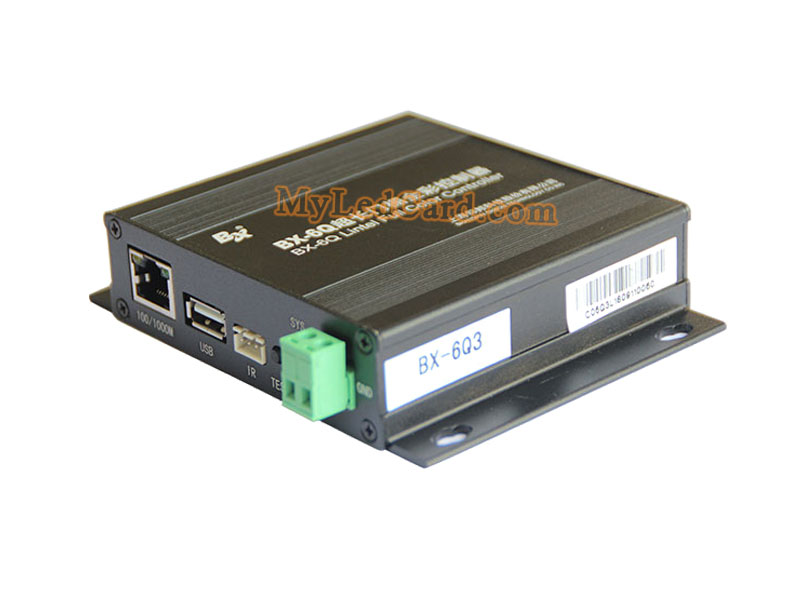

OnBon BX-6Q Series Full Color LED Controller MLC-BX-6Q by OnBon - view 2

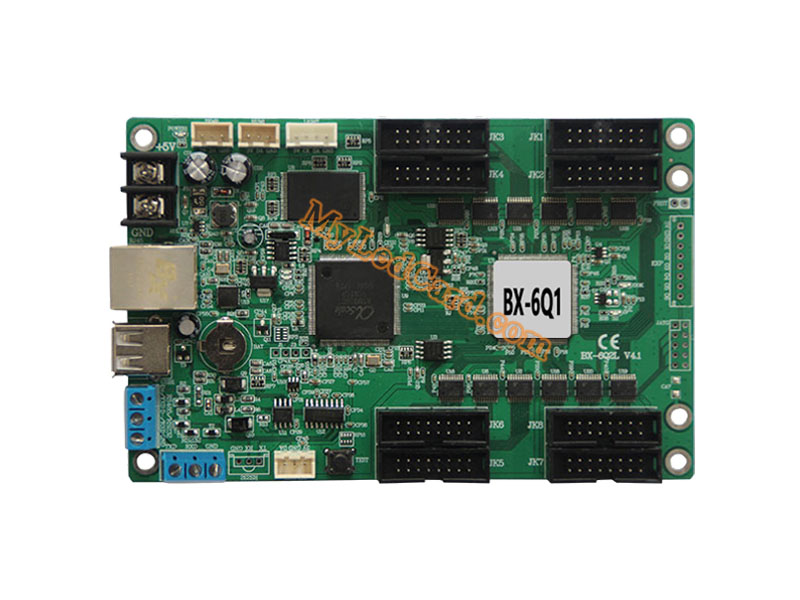

OnBon BX-6Q Series Full Color LED Controller MLC-BX-6Q by OnBon - view 3

OnBon BX-6Q Series Full Color LED Controller

Write Review

SKU: MLC-BX-6Q
50 Units in Stock
Brand: OnBon
Category:Asynchronous Control Cards

$55.00

Model

Description
Shipping information
Reviews

OnBon BX-6Q Series Full Color LED Controller

The BX-6Q lintel series includes BX-6Q0 (75), BX-6Q1, BX-6Q2, BX-6Q3L and BX-6Q3, which is mainly used for extra long door head / storefront full color LED sign screens and other customized projects

Support full color, support smart scan mode, compatible with all kinds of special modules and full color modules;

Support system configuration and IP modification;

100M LAN port ,USB port on board ,standard match with 512MB/4GB/ FLASH;

High refresh rate,high gray level, colorful image and moving smoothly;

Abundant background effect and colorful text ,smooth video & animation displaying;

Support multi group of dynamic areas,support update online(BX-6Q2/6Q3L/6Q3）

Match with BX-YY, support Chinese&English broadcasting( on board RS232 is necessary )

Advantages

(1)One screen matched with one card ,easy installation ,cost efficient;

(2)6Q0/6Q1/6Q2 are customized for all kinds of full color LED lintel screens and LED posters;

(3)6Q3L/6Q3 are customized for super length full color LED lintel screen ;

(4)6Q series are widely used in all kinds of customized projects and secondary development.

Disadvantages

(1)When transformed program into uncompressed 16bit bitmap, will take long time with a large amount of data, lower communication efficiency and especially more obvious when sending the long tables and videos.

(2)The Y04/Y08 have better performance than 6Q0/6Q1/6Q2 in the application of LED lintel screen ,LED poster and wifi/4G wireless cluster.

Y2L/Y2/Y3 performance will be better in the application of super length LED lintel full color screen. the Y series player will replace the 6Q series in future.

(3)6Q series can’t support the PWM chip

USB transmission distance:

BX-6Q0/6Q1 /6Q2 adopts USB1.2 protocol with a speed of 12Mbit/S ,transmission distance ≤ 8 meters.

BX-6Q3L/6Q3 adopts USB2.0 protocol with a speed of 480Mbit/S ， transmission distance≤ 5 meters.

The BX-6Q series is recommended to use a high quality single shielded extension cable ,without connector in the middle.

Split mode instructions:

BX-6Q1 /6Q2 support split mode, which can make double refresh rate and better display.

Split mode wiring method: controller is not in the middle of the screen, but should put in a quarter of the screen which close to the data input end.

The cable length between the module and the controller should not exceed 3 meters when use split mode.
