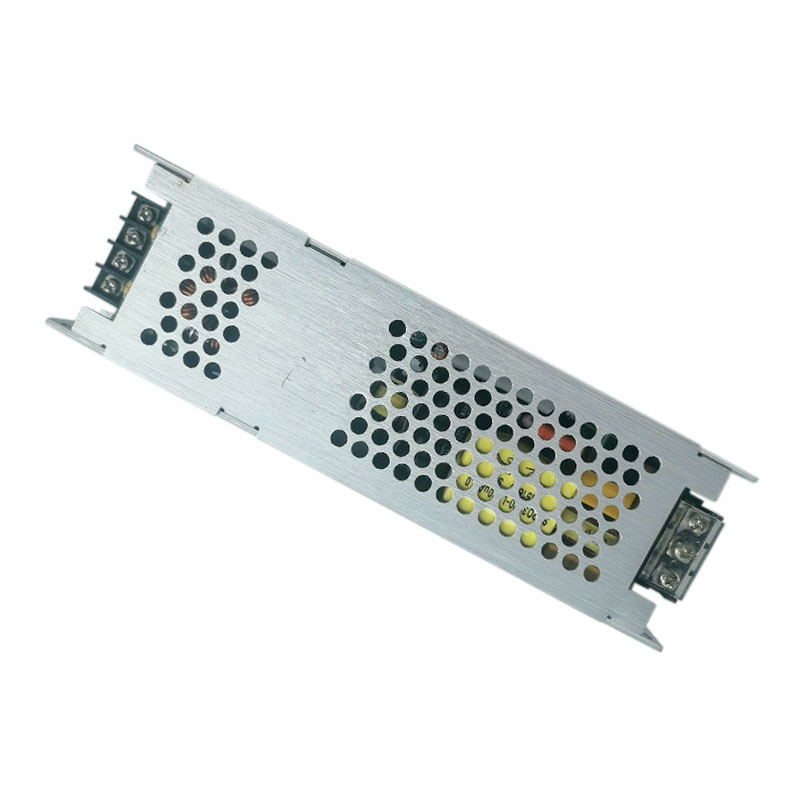

NHP200-3.8/CU 40A Series LED Display Power Supply

Write Review

SKU: NHP200-3.8/CU
301 Units in Stock
Brand: CVTE
Category:LED Power Supplies

$40.00

Optional

Installed by 4 Bottom U-shaped Holes

Output Voltage

Description
Shipping information
Reviews

The NHP200-3.8/CU is a high-efficiency 3.8V 40A switching power supply specifically engineered for energy-saving LED displays and video walls. Operating on a low-voltage DC output rail, this flagship unit reduces power consumption and heat generation across large-scale LED screen setups. (Note: Additional output voltage selections ranging from 2.8V to 5V DC are also available within the NHP200 series to match your specific LED module requirements.)

Features
• Wide Input Voltage: Supports 100-240VAC auto-ranging global input, suitable for worldwide installations.
• High Efficiency & PF: Delivers 89% energy efficiency and a 0.95 power factor (PF) to reduce power consumption and heat generation.
• Slim 30mm Profile: Built with a compact 30mm thickness to fit easily into narrow indoor and outdoor LED cabinets.
• Industrial Safeguards: Integrated mechanisms against short circuits, overloads, and overvoltage to secure the unit and LED modules.
• Wide Operating Temperature: Operates across a wide -40°C to +65°C range (with thermal derating applied at elevated environment limits).
• Safety Certifications: Fully CE and UL certified, ensuring strict compliance for international commercial project approvals.

Specifications

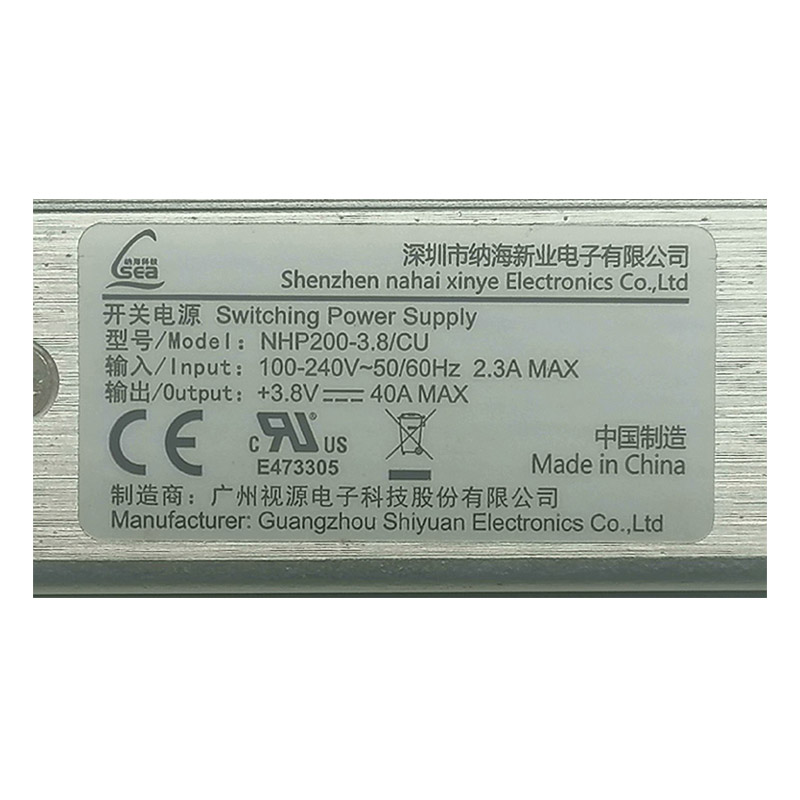

Model: NHP200-3.8/CU
Brand: Nahai Xinye
Manufacturer: Shiyuan/CVTE
Input Voltage Range: 100–240V AC
Input Current: 2.3A Max
Output Voltage: 3.8V DC
Output Current: 40A Max
Total Output Power: 168W
Power Efficiency: 89%
Power Factor: >= 0.95 PF
Operating Temperature: -40°C to +65°C (with derating)
Dimensions (L x W x H): 208 x 60 x 30 mm
Compliance Certifications: CE, UL

Series Models in Comparison
The NHP200 series share the same input voltage, output current and dimensions but vary by their output voltage to suit different LED chip and driver IC requirements.

• NHP200-3.8/CU (This Model): 3.8V / 40A — Optimized for LED panels that demand energy saving and reduced thermal loads.
• NHP200-2.8/CU: 2.8V / 40A — Specialized ultra-low-voltage configuration for maximum energy conservation.
• NHP200-3.3/CU: 3.3V / 40A — Low-voltage configuration optimized for fine-pitch indoor LED modules.
• NHP200-4.2/CU: 4.2V / 40A — Mid-voltage configuration optimized for energy-saving SMD LED panels.
• NHP200-4.5/CU, NHP200-4.6/CU & NHP200-5/CU: 4.5V / 4.6V / 5V / 40A — Universal power solutions for standard high-brightness indoor and outdoor screens.

FAQs
• Q: How do I choose the correct voltage version (e.g., NHP200-3.8/CU vs. NHP200-5/CU)?
A: Always verify the specific input voltage requirements printed on the backside of your current LED display cabinet or module. Using an incorrect voltage version can damage the LED pixels.
• Q: Is this power supply compatible as a direct replacement for my existing LED display cabinet?
A: Yes. As long as the physical dimensions (208 x 60 x 30mm) match your cabinet's internal power bracket and the total current requirement per panel does not exceed 40A, the NHP200 series serves as an excellent upgrade or maintenance replacement.
