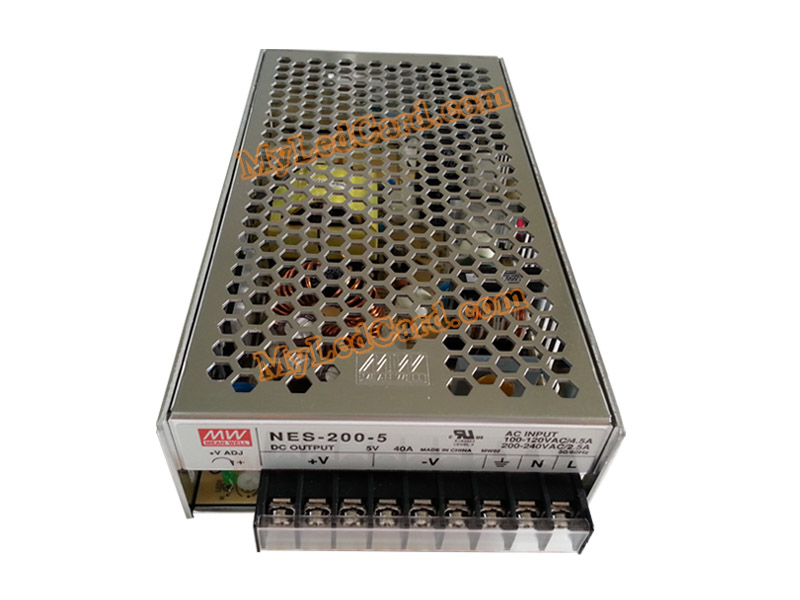

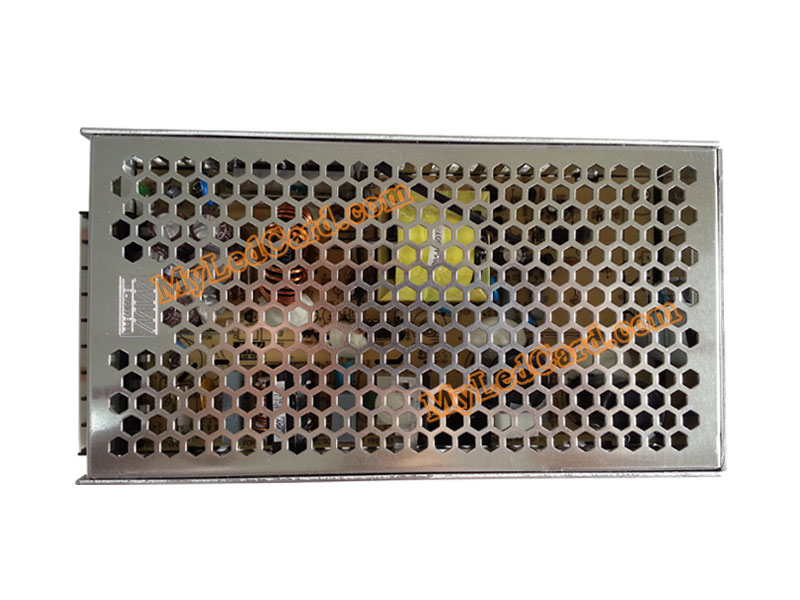

MeanWell NES-200-5 40A 5V 200W Switching Power Supply
  • MeanWell NES-200-5 40A 5V 200W Switching Power Supply
  • MeanWell NES-200-5 40A 5V 200W Switching Power Supply

MeanWell NES-200-5 40A 5V 200W Switching Power Supply

  • Model: MLC-NES-200-5
  • 508 Units in Stock
  • Shipping Weight: 1Kg
  • Manufactured by: MeanWell
$48.00

  • Product Details
  • Shipping information
  • Customer Reviews

MeanWell NES-200-5 40A 5V 200W Switching Power Supply

MeanWell NES-200-5  Features:

1:Low cost,high reliability
2:AC input range selectable by switch
3:Built-in constant current limiting circuit
4:Cooling by free air convection
5:Protections: Short circuit / Overload / Over voltage/
6:Withstand 300vac surge input for 5 second
7:LED indicator for power on
8:100% full load burn-in test
9:Over temperature
10:Fixed switching frequency at 90KHz

Product Specifications:

Model NES-200-5
Input Voltage Range (Note 4) 90 ~ 132VAC / 180 ~ 264VAC by switch 254 ~ 370VDC
FREQUENCY RANGE 47 ~ 63Hz
AC CURRENT 4.5A/115VAC 2.5A/230VAC
LEAKAGE CURRENT <3.5mA / 240VAC
INRUSH CURRENT (max.) 40A/115VAC 55A/230VAC
EFFICIENCY (Typ. 79%
Output RATED CURRENT  40A
DC VOLTAGE  5V
RATED POWER  200W
CURRENT RANGE  0-40A
VOLTAGED ADJ. RANGE  4.5 ~ 5.6V
RIPPLE & NOISE (max.) Note.2  150mVp-p
VOLTAGE TOLERANCE Note.3 ±2.0%
LOAD REGULATION  ±1.0%
LINE REGULATION  ±0.5%
HOLD UP TIME 20ms/230VAC 16ms/115VAC at full load
SETUP, RISE TIME 1000ms, 50ms/230VAC 1000ms,50ms/115VAC at full load
Safety WITHSTAND VOLTAGE I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
SAFETY STANDARDS UL60950-1 approved
ISOLATION RESISTANCE I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25 / 70% RH
Environment  WORKING HUMIDITY  20 ~ 90% RH non-condensing
 WORKING TEMP  -20 ~ +50 (Refer to output load derating curve)
 TEMP. COEFFICIENT  ± 0.03%/
