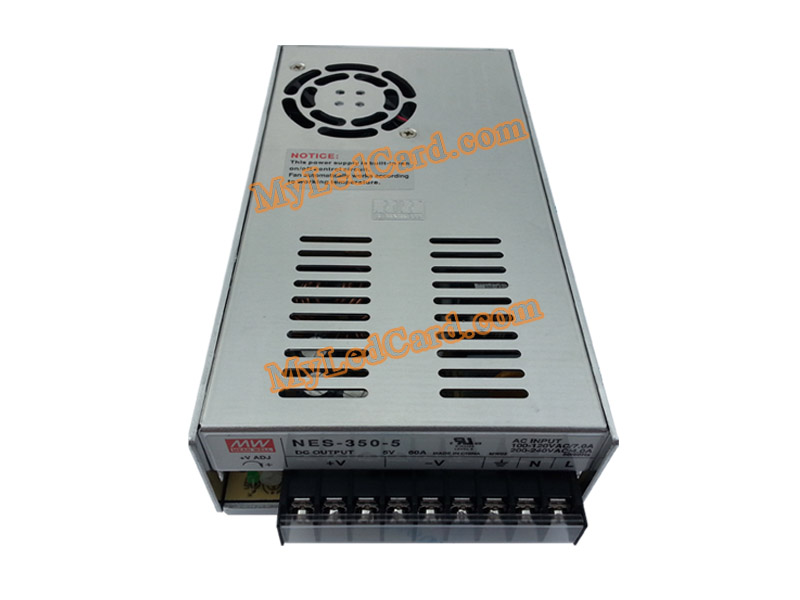

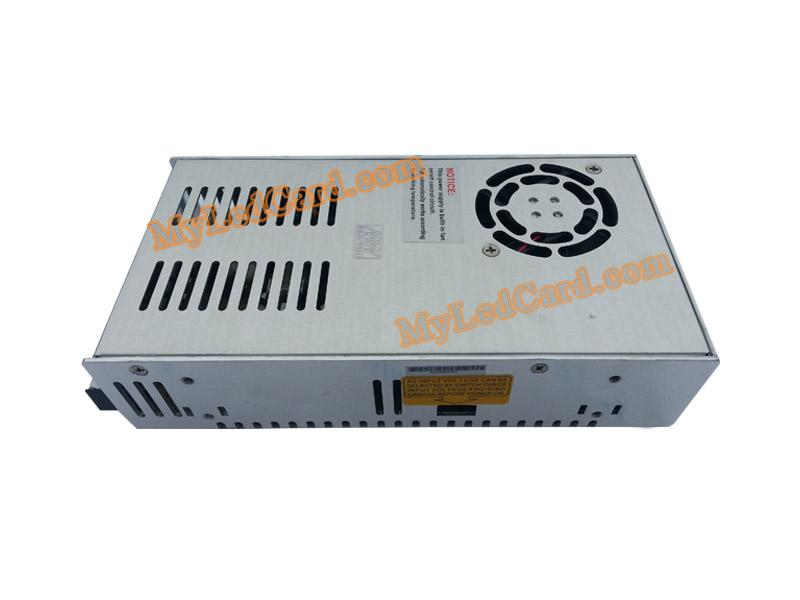

MeanWell 300W 60A 5V Single Output Switching Power Supply (NES-350-5)
  • MeanWell 300W 60A 5V Single Output Switching Power Supply (NES-350-5)
  • MeanWell 300W 60A 5V Single Output Switching Power Supply (NES-350-5)

MeanWell 300W 60A 5V Single Output Switching Power Supply (NES-350-5)

  • Model: MLC-NES-350-5
  • 349 Units in Stock
  • Shipping Weight: 1.1Kg
  • Manufactured by: MeanWell
$55.00

  • Product Details
  • Shipping information
  • Customer Reviews

MeanWell 300W 60A 5V Single Output Switching Power Supply (NES-350-5)

NES-350-5 Features:

1:100% full load burn-in test
2:Protections: Short circuit / Overload / Over voltage / Over temperature
3:AC input range selectable by swith
4:Forced air Cooling by built-in DC fan
5:Withstand 300VAC Surge input for 5 seconds
6:Built-in constant current limiting circuit
7:Built-in cooling Fan ON-OFF control
8:LED indicator for power on
9:Low cost / High reliability
10:Fixed switching frequency at 100KHz

Specifications:

Model NES-350-5
Input Voltage Range (Note 4) 90 ~ 132VAC / 180 ~ 264VAC by switch 254 ~ 370VDC
FREQUENCY RANGE 47 ~ 63Hz
AC CURRENT (Typ.) 7A/115VAC 4A/230VAC
LEAKAGE CURRENT <3.5mA / 240VAC
INRUSH CURRENT (Typ.) 40A/115VAC 60A/230VAC
EFFICIENCY (Typ.) 78%
Output RATED CURRENT 60A
DC VOLTAGE 5V
RATED POWER 300W
CURRENT RANGE 0-60A
VOLTAGED ADJ. RANGE 4.5~ 5.6V
RIPPLE & NOISE (max.) Note.2 150mVp-p
VOLTAGE TOLERANCE Note.3 ±3.0%
LOAD REGULATION  ±0.5%
LINE REGULATION  ±0.5%
HOLD UP TIME 20ms/230VAC 16ms/115VAC at full load
SETUP, RISE TIME 1000ms, 50ms/230VAC 1000ms,50ms/115VAC at full load
Protection OVER VOLTAGE 5.75 ~ 7.5V
Protection type :Shut down O/P voltage, re-power on to recover
OVER LOAD 105 ~ 135% rated output power
Protection type : Constant current limiting, recovers automatically after fault condition is removed
OVER TEMPERATURE 90 5 (3.3~7.5V); 85 5 (12~15V); 80 5 (24V);75 5 (27~48V) (TSW1) Detect on case
Protection type : Shut down O/P voltage, recovers automatically after temperature goes down
Safety WITHSTAND VOLTAGE I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
SAFETY STANDARDS UL60950-1 approved
ISOLATION RESISTANCE I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25 / 70% RH
Environment  WORKING HUMIDITY  20 ~ 90% RH non-condensing
 WORKING TEMP  -20 ~ +60 (Refer to output load derating curve)
 TEMP. COEFFICIENT  ± 0.03%/
