ColorLight X6 LED Screen System Controller
  • ColorLight X6 LED Screen System Controller
  • ColorLight X6 LED Screen System Controller

ColorLight X6 LED Screen System Controller

  • Model: MLC-Colorlight-X6
  • 250 Units in Stock
  • Shipping Weight: 7Kg
  • Manufactured by: ColorLight
$550.00

  • Product Details
  • Shipping information
  • Customer Reviews
ColorLight X6 LED Screen System Controller

Colorlight X6 is a professional LED screen control system and video processing equipment. It equips with various video signal interfaces, supports high-definition digital ports (SDI, HDMI, DVI), and seamless switching between signals can be achieved. It supports broadcast quality scaling and multi-pictures display
.
X6 Features:

Supports various digital signal ports, including 1x SDI, 1x HDMI, 2x DVI

• Supports input resolution up to 1920×1200@60Hz

• Loading capacity: 3.9 million pixels, Maximum width: 8192 pixels, Maximum height: 4096 pixels

• Supports arbitrary switching of video sources

Supports three-picture displays, the location and size can be adjusted freely

• Supports HDCP1.4

• Dual USB2.0 for high speed configuration and easy cascading among controllers

• Supports adjustment of brightness, chromaticity, contrast ratio, tone, and saturation

• Supports improved gray-scale performance at low brightness

• Compatible with all receiving cards, multifunction cards, and optical fiber converters of Colorlight

Specifications:

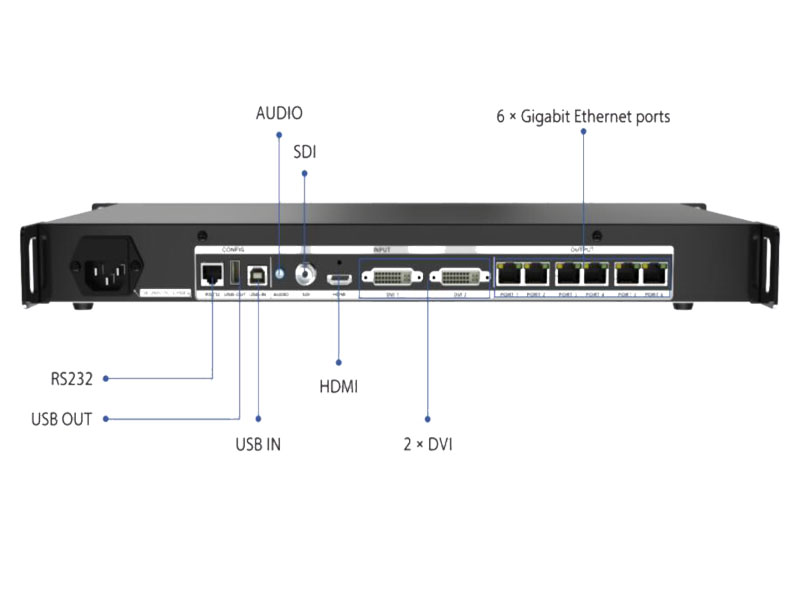

Input Interface

DVI

2 DVI inputs

VESA Standard (supports 1920×1200@60H), supports HDCP

HDMI

HDMI input

EIA/CEA-861 Standard, supports 1920×1200@60Hz

supports HDCPP

SDI

SDI input,compatible with 3G-SDI, HD-SDI, SD-SDI

AUDIO

Audio input, use with multi-function card (optional)



Output Interface

Port1-8

RJ45, 8 Gigabit Ethernet ports



Controlling Interface

USB_IN

USB input, which connects with PC to configure parameters

USB_OUT

USB output, cascading with the next controller

RS232

RJ11 interface, connected with central control



Specifications

Size

1U standard box (482.6mm×44mm×237.5mm)

Input voltage

AC 100~240V

Rated Power Consumption

20W

Working Temperature

-20~60℃

Weight

2.3kg
