ColorLight A35 WiFi 4G LED Cloud Media Player
Colorlight A35 wireless LED cloud media player series includes A35 without 4G, A35-CM18 with 4G, and A35-CM19 with 4G. A35 is a new generation of cloud network player, supporting the Carlite cloud platform, supporting 4G, WIFI, wired network, and other networking methods, rapid deployment to achieve intelligent cloud management functions, multi-screen, multi-service, cross-regional unified management. It has significant advantages in indoor and outdoor fixed installation and centralized management, publishing, monitoring, and other fields, and can be widely used in a variety of commercial display areas, such as light poles, door screens, advertising machines, mirror screens, car screen.
Support maximum 350,000-pixel load capacity, maximum 2048 pixels, maximum 1200 pixels.
Support for cloud hierarchy management and multi-role program publishing
Support cloud monitoring alarms and automatic linkage
Powerful processing performance supports H.265 4K HD video hard decoding and playback.
8GB capacity
Multiple playback modes
Support U disk plug and play, U disk update playlist.
Support multi-screen sync playback
Support timing commands.
Windows and materials
Support multiple program pages, up to 32 program pages
Support for rich media materials, such as pictures, videos, text, clocks, etc., support for video, picture zooming
Support multi-window playback and stacking, and freely set the window size and position.
Simultaneous playback of up to 2 HD windows or up to 1 4K video playback window
Total Control Solutions
Support multiple control platform control, LED wizard, mobile phone, tablet APP control.
Manage a wide variety of applications for different applications
network communications
WiFi dual-band dual-mode, supporting WiFi 2.4G and SG bands, WiFi hotspot mode, or WiFi client mode1
LAN supports DHCP mode and static mode
4G communication, supporting 4G networks in various countries (optional)
GPS positioning (optional)
Specification:
Hardware Performance: 4K HD Hard Decode Playback
Program storage: 8GB (4GB available for programs)
Running Memory: 1GB
Maximum payload area: Maximum payload 350,000 dots, maximum 2048 pixels, maximum 1200 pixels
Built-in system: Android OS 9.0 (Android Pie)
Support receiver cards: Colorlight series receiver cards are supported.
Dimensions:108×128×26mm (4.25×5.04×1.02 inch)
Package size:370×320×52mm (14.57×12.60×2.05 inch)
Working voltage:DC5V-12V
Adapter voltage input:AC 100～240V 5OHz
Maximum power:15W
Weight:0.33kg (11.64 oz)
Operating temperature:-40℃～80℃ (-40°F--176°F)
Ambient humidity: 0-95%, non-condensing
System software
PC client
PlayerMaster: Local display management, program editing, and publishing. Cloud display management, program editing, and publishing.
LEVINSON: LED configuration tool, mainly used for display configuration, and adjust the display to the best state.
Website
Colorlight Cloud: Web-based display information publishing and management system that enables cluster management and display management via browser login.Information dissemination and monitoring.
Mobile Client
LED Wizard: Support Android and iOS platforms, can easily achieve wireless control of the playback terminal.
Basic Parameters
Hardware
1.4GHz quad-core CPU
Quad-core GPU
1GB@1066MHz DDR3
1080P HD Hardware decoding
Memory
8GB (System occupied 2.5G), external U disc supported
Loading Capacity Maximum loading capacity: 655360 pixels; maximum width: 4096 pixels, maximum height: 1536 pixels
Receiving Card Supported
All Colorlight receiving cards

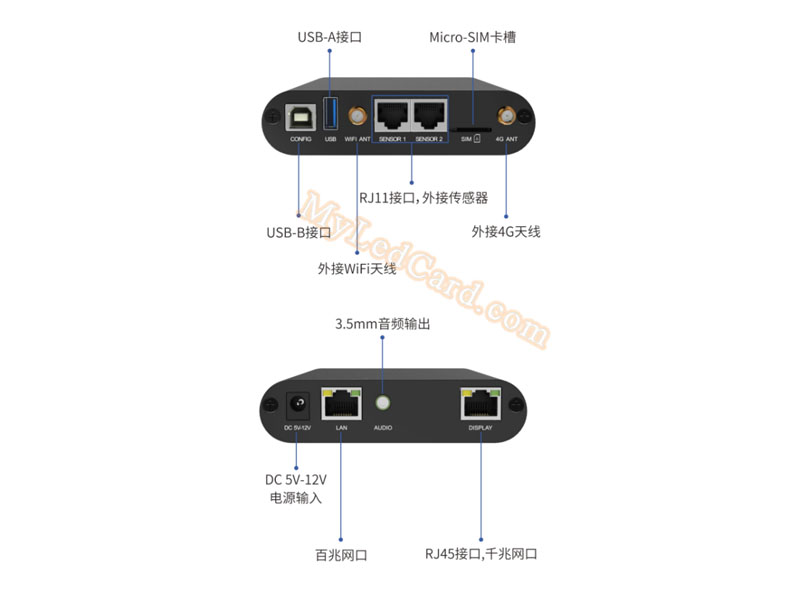

Interfaces
Ethernet Output Output signal to receiving cards
Audio Output 1/8×(3.5mm)TRS
CONFIG Port Set screen parameters, content transmission
USB Ports 2×USB2.0, supports external storage (U disc or SD card, 128GB in maximum) or communication equipment
Ethernet Input Access LAN (WAN not supported)
DC Power Supply Standard 5V~12V input
Physical Parameters
Size 128.5×103.6×28.3mm
Working Voltage DC 5V~12V
A/C Adapter AC 100~240V 50Hz
Rated Power 6W
Weight 0.23kg
Working Temperature -25℃～60℃
Environmental Humidity 0-95% without condensation
File Format
Program Schedule Supports multiple Program play in sequence, support Program timing play
Program partition Supports program windows splice, overlapping
Video Format AVI, WMV, MPG, RM/RMVB, MOV, VOB, MP4, FLV, etc. Supports multiple videos play at the same time
Audio Format MPEG-1 Layer III，AAC, etc
Image Format Bmp, jpg, png, etc
Text Format Txt, rtf, word, ppt, excel, etc
Text Display Single Line Text, Static Text, Multi-Line text, etc
Play Window 4 video windows, multiple text/picture windows, scrolling text, scrolling image, LOGO, Date/Time/Week, weather. Flexible screen split, different contents in each window
OSD Supports 32bit OSD, supports video/text/picture mixture or overlap, and available for fully transparent, opaque, translucent effects
RTC Real-time Clock Display and Management
Terminal Management & Control
Communication System Stand-alone or access LAN
Content Update U disc plug-and-play; Management terminal transmission
Management Devices PC, Android, iOS smart terminals
Ethernet Control Real-time brightness adjustment; Screen switch on/off; System parameters configuration; Content play control
Timing Switch on/off Set through LEDVISION
Software
LEDVISION 4.20/higher version
